| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT, ROAD |

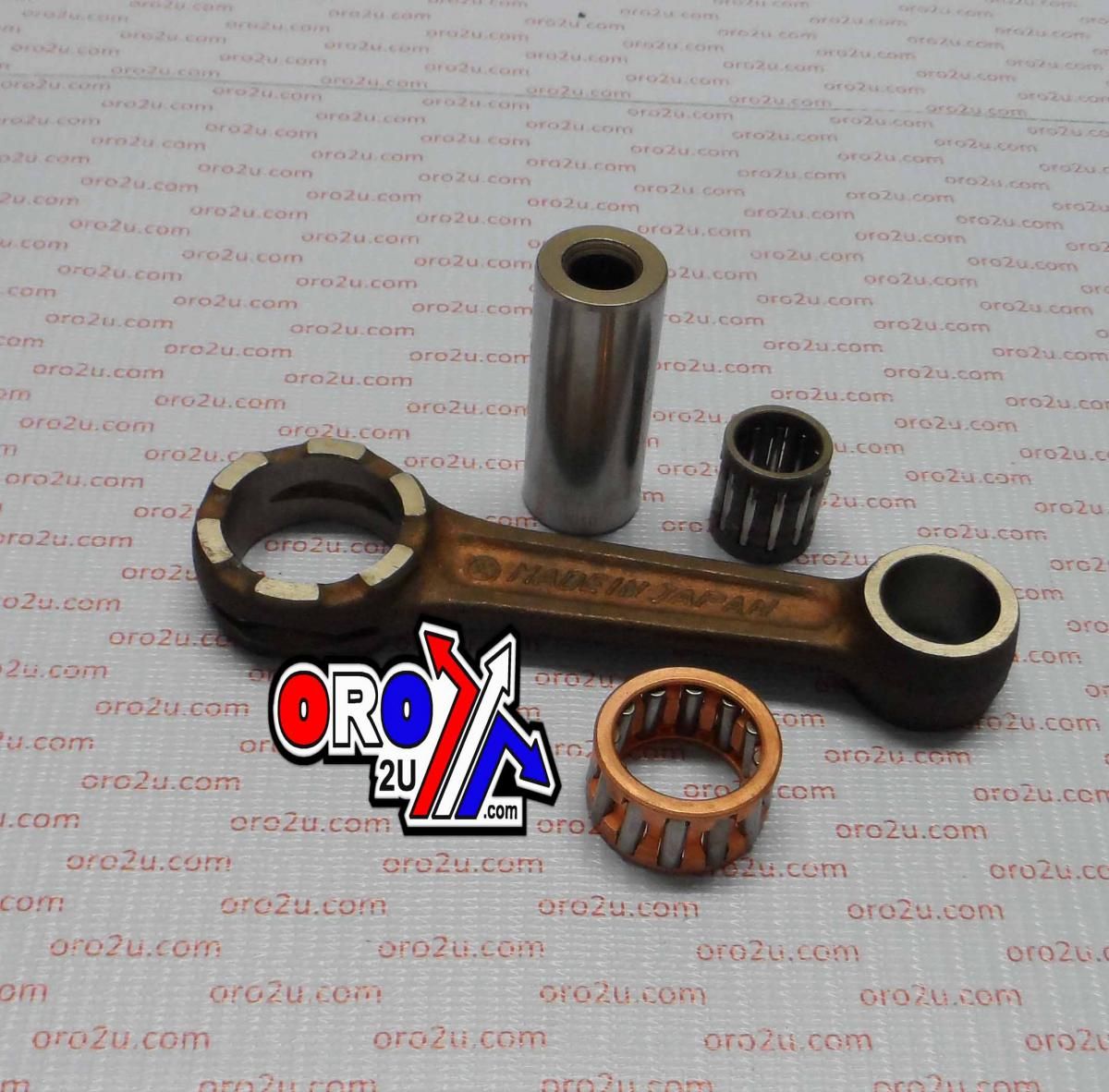

CONNECTING ROD KH125A, CONROD SMALL END 14x18x20
KAWASAKI
KH125 A,
KS125 74-75, KE125A 76-83, KH125A,
1974 KS125 CRANKSHAFT-PISTON-ROTARY VALVE (’74-’75)
CONNECTING CONROD ROD REBUILD KIT.
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
96 |
|
Small End Bearing |
14x18x19.80 |
|
Small End Bore Ø |
18 |
|
Small End Width |
15.00 |
|
Big End Bearing |
20x27x14.8 |
|
Big End Bore Ø |
27 |
|
Big End Width |
15 |
|
Big End Pin Ø |
20 |
|
Big End Pin Length |
50.00 |
|
Washer Thickness |
None |
Part No. 56-948.B (oro2u.com)
Cross reference numbers ONLY.
13044-5003
