CONNECTING ROD CAGIVA 125, CONROD SIZE 110/22 BCO0590A, RO-8204, MC-09203
Brand: Dirt Racing
Stock: 4
| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
CONNECTING ROD CAGIVA 125, CONROD SIZE 110/22 BCO0590A, RO-8204, MC-09203
Cagiva – Mito 125,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09203
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

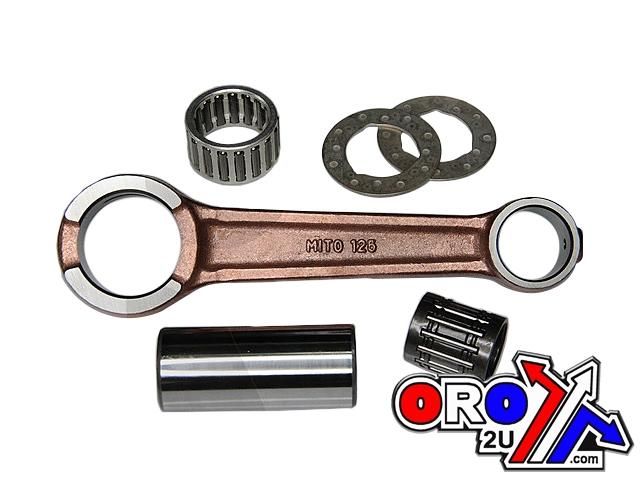

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|

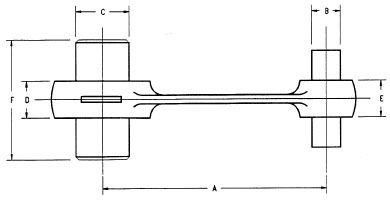

SIZE |
MM |
|
Centre 2 Centre |
110 |
|
Small End Bearing |
16x22x22.5 |
|
Small End Bore Ø |
18 |
|
Small End Width |
16 |
|
Big End Bearing |
22x28x15.8 |
|
Big End Bore Ø |
28 |
|
Big End Width |
16 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
51 |
|
Washer Thickness |
22x27x1 |
– Meets or exceeds OEM quality.
– Direct oem replacement.
– Best value for money
– All are made to OEM specifications and match the original equipment in appearance.
– PSYCHIC products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image before ordering to avoid mistakes.
Part No. 56-966 (oro2u.com)
Cross reference numbers ONLY.
RO-8204, MC-09203, BCO0590A
