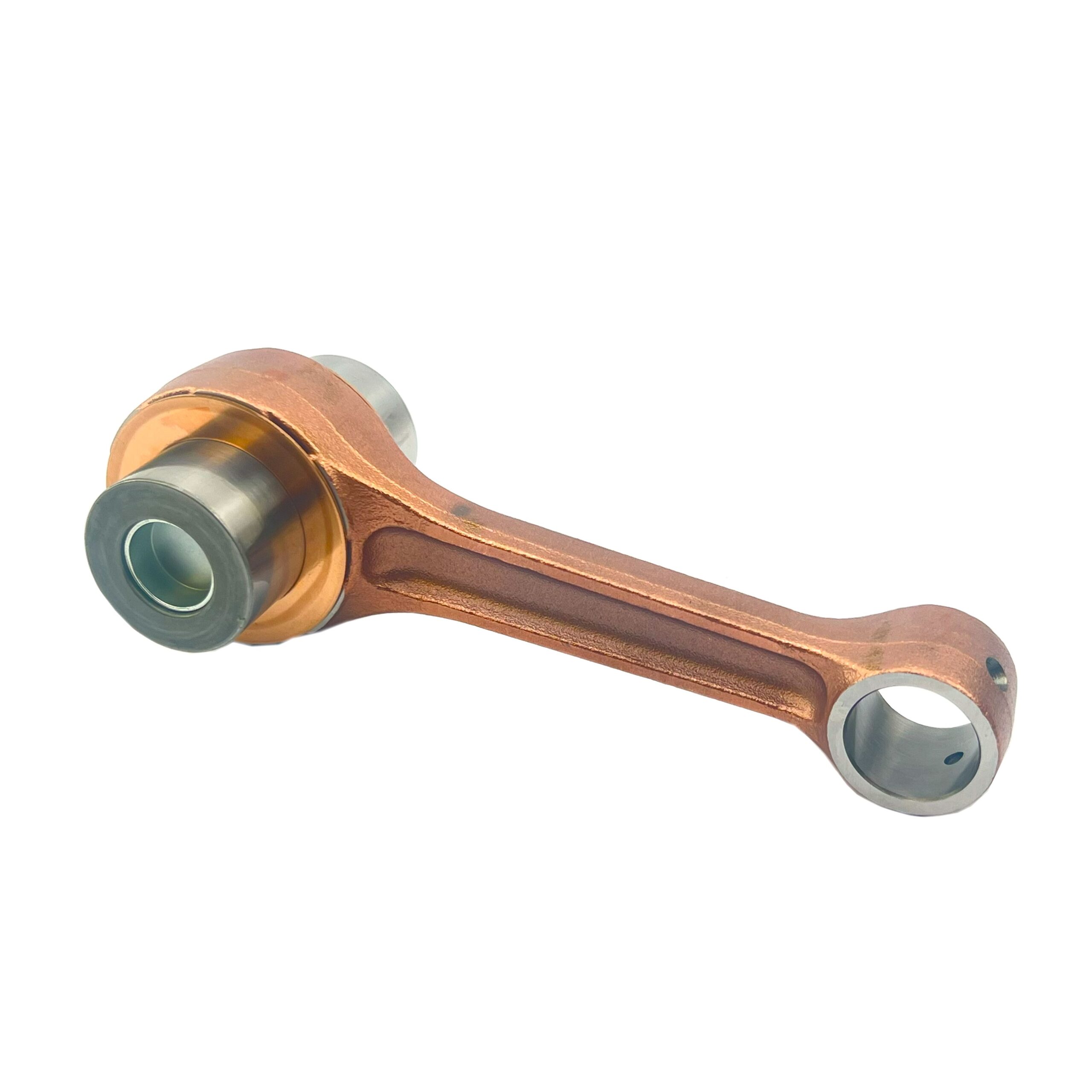

CONNECTING ROD ARCTIC CAT, BRONCO AT-09411 ATV / UTV

ATV (ARCTIC CAT)
2009-17 550 H1/TRV/GT/LTD/ALTERRA/XR/XT,
2005-12 650 H1/TBX/TRV/4X4,
2008-18 700 H1/TBX/HDX/XR/ALTERRA/VLX,
UTV (ARCTIC CAT)
2009-15 550 PROWLER/XT,
2006-09 650 PROWLER,
2008-17 700 PROWLER,

CONNECTING ROD REBUILD KIT BRONCO AT-09411

CENTER-TO-CENTER 139.8mm,
Big Bore 47x25mm,
Small Bore 23x25mm,
Brottom Bearing 37x47x24.80mm,
Washers 37.44x55x1.0mm,

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Part No. 56-0357.BR (oro2u.com)

Cross reference numbers ONLY.
0805-032, 0805-073, 0805-278, 0805-286, 0805-325, 0805-3
