CONNECTING ROD 99-03 RM125, PSYCHIC MX-09057 REPAIR KIT

SUZUKI
RM125 1999-2003,

CONNECTING ROD REBUILD KIT PSYCHCI MX-09057

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

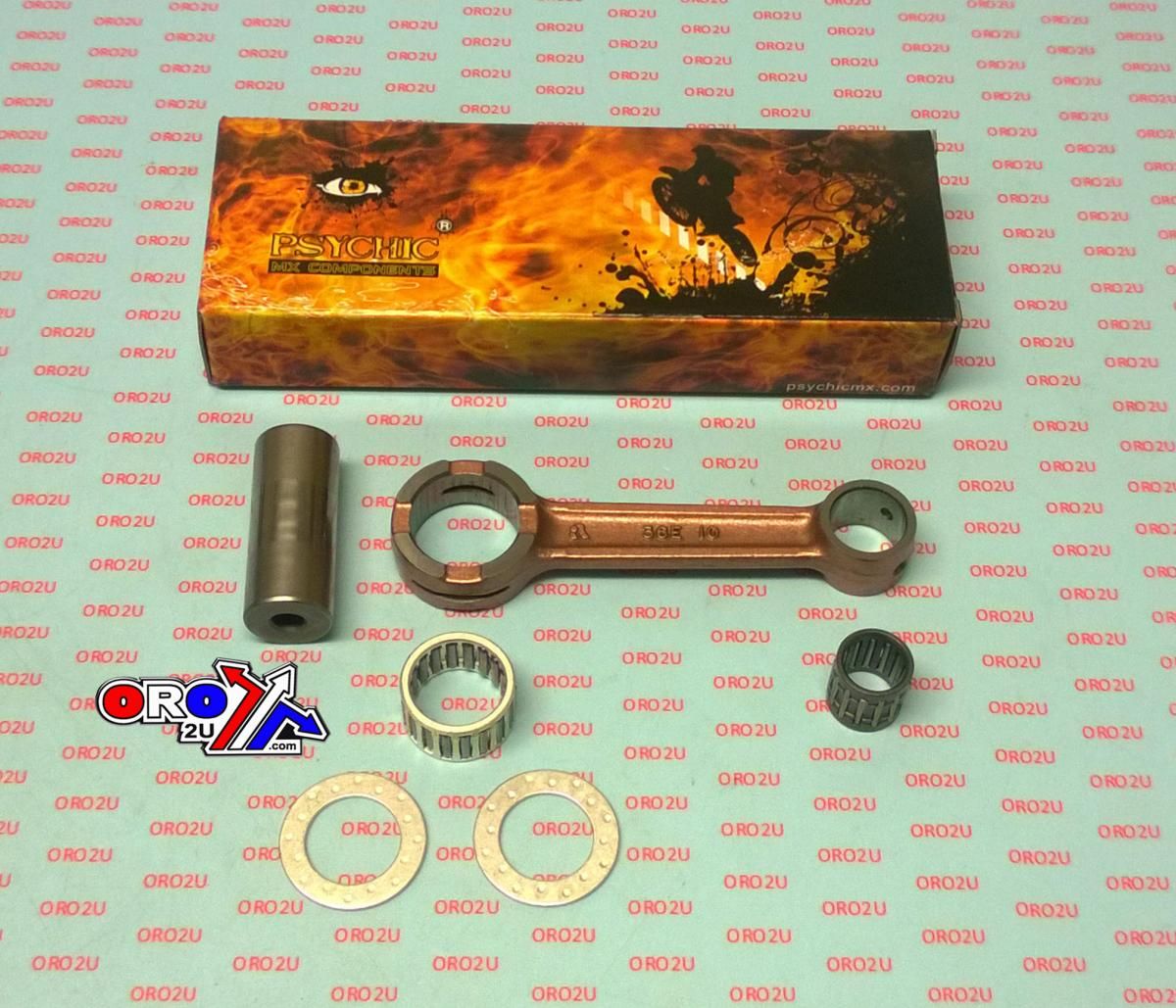

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Part No. 56-117.DR (oro2u.com)

Cross reference numbers ONLY.
RS-3203, 12161-43D00, HOT RODS 8159, WOSSNER P2013, WISECO WPR177, PSYCHIC MX-09057, PROX 03.3219

Big End Bearing (mm): 22x28x16
Big End Bore (mm): 28.00
Big End Width (mm): 15.90
Center To Center (mm): 102.00
Pin Diameter (mm): 22.00
Pin Length (mm): 52.90
Small End Bearing (mm): 15x19x20
Small End Bore (mm): 19.00
Small End Width (mm): 17.90SIZE
