| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |

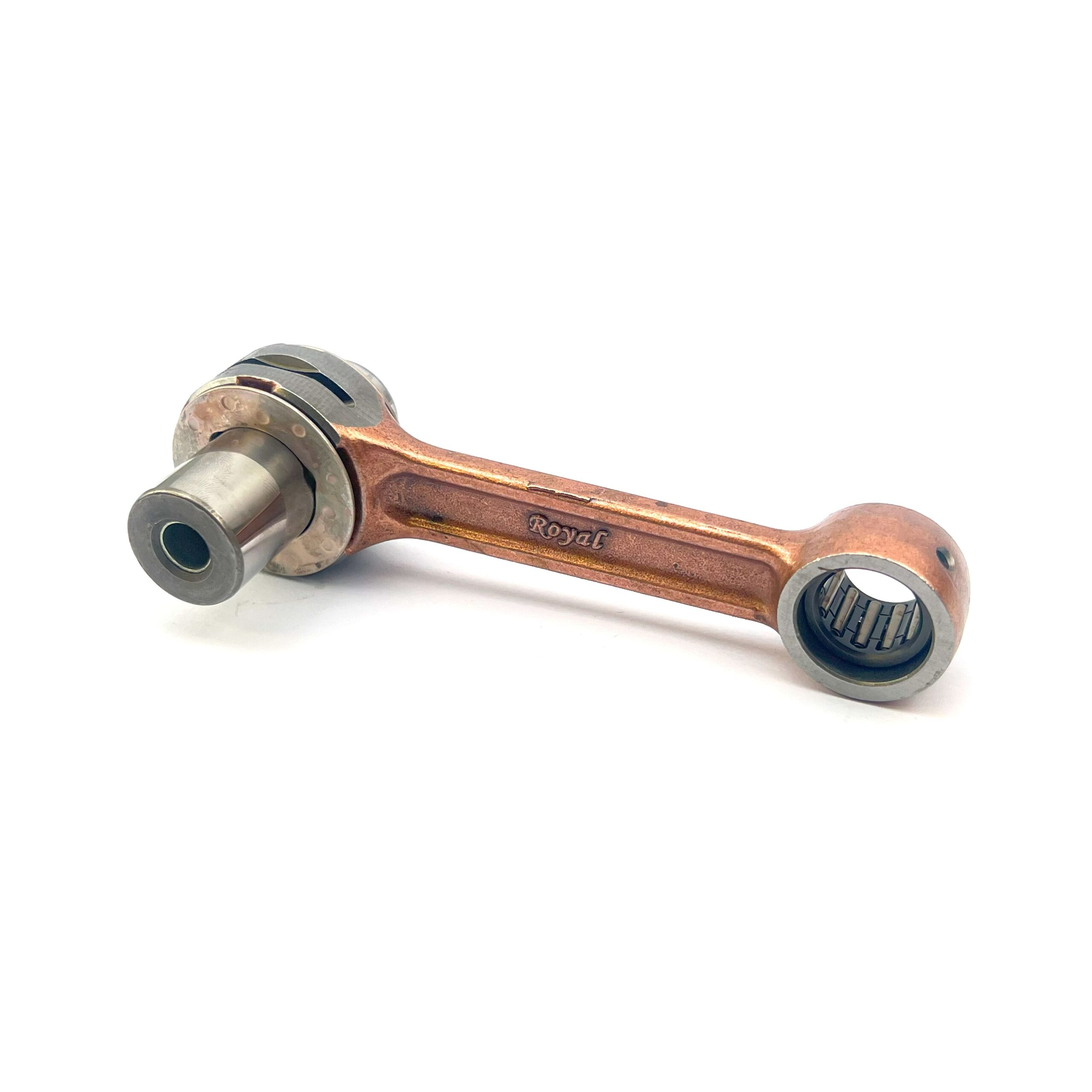

CONNECTING ROD 97-00 YZ125, PSYCHIC MX-09078 4PE-11651-02-00
YAMAHA
YZ125 1997-2000,
CONNECTING CONROD ROD REBUILD KIT PYSCHIC MX-09078
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
Big End Bearing (mm): 22x29x16.8
Big End Bore (mm): 29.00
Big End Width (mm): 16.95
Center To Center (mm): 105.00
Pin Diameter (mm): 22.00
Pin Length (mm): 54.30
Small End Bearing (mm): 15x20x17.8
Small End Bore (mm): 20.00
Small End Width (mm): 16.95
Part No. 56-153.DR (oro2u.com)
Cross reference numbers ONLY.
HOT RODS CR174 8143, 4PE-11651-02-00, WOSSNER P2019, WISECO WPR174, PSYCHIC MX-09078, ATHENA P40321015,
