CONNECTING ROD 96-06 XR400, HOT RODS 8124 HONDA

High-performance Hot Rods connecting rod kit designed for Honda XR400 models. Built to deliver durability and reliability, this kit meets or exceeds OEM specifications, making it a dependable choice for heavy-duty performance and long-term use.

Features:

• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods enhance grain flow and ensure dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

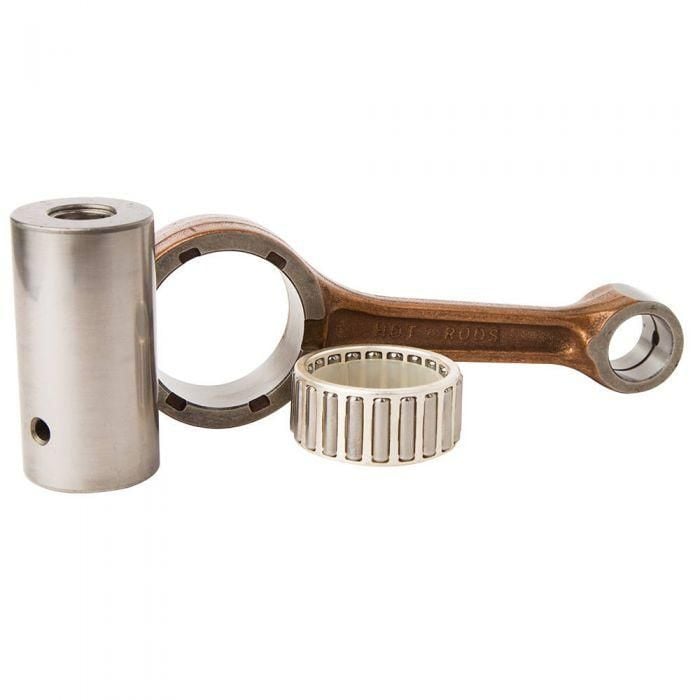

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bore: 43.00 mm
• Big End Width: Not specified
• Center to Center: 122.60 mm
• Pin Diameter: 34.00 mm
• Pin Length: 65.90 mm
• Small End Bore: 20.00 mm

Cross-Reference OEM Part Numbers:
HONDA: 13000-KCY-670, 13000-KCY-671, 13000-KCY-672
56-890_HR

Compatibility:

• Honda XR400: 1996–2006

Part Number:
8124
