CONNECTING ROD 93-15 YZ80 YZ85, YAMAHA

YAMAHA
YZ85 YZ80 1993 – 2015,

CONNECTING CONROD ROD REBUILD KIT.

– OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– oro2u Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

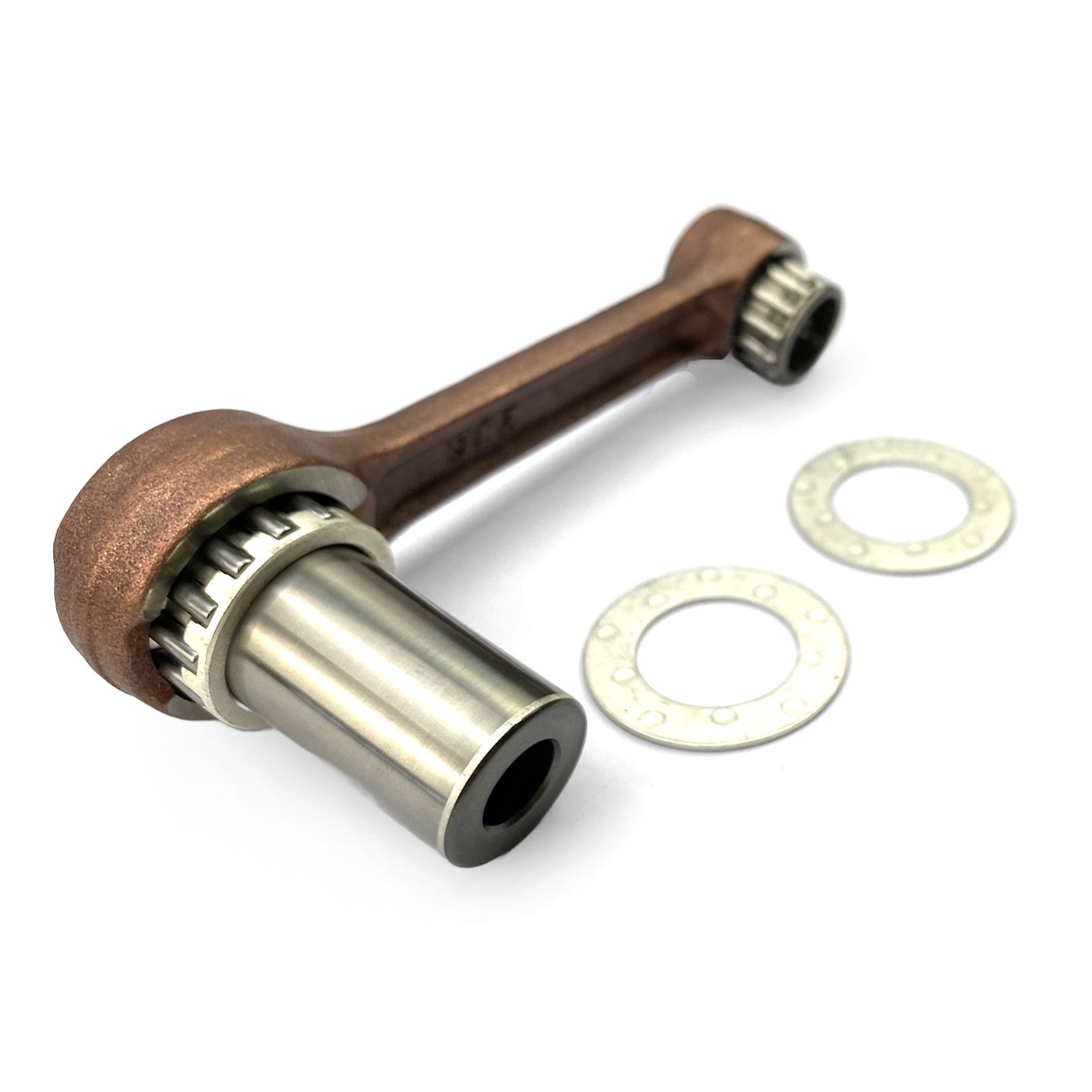

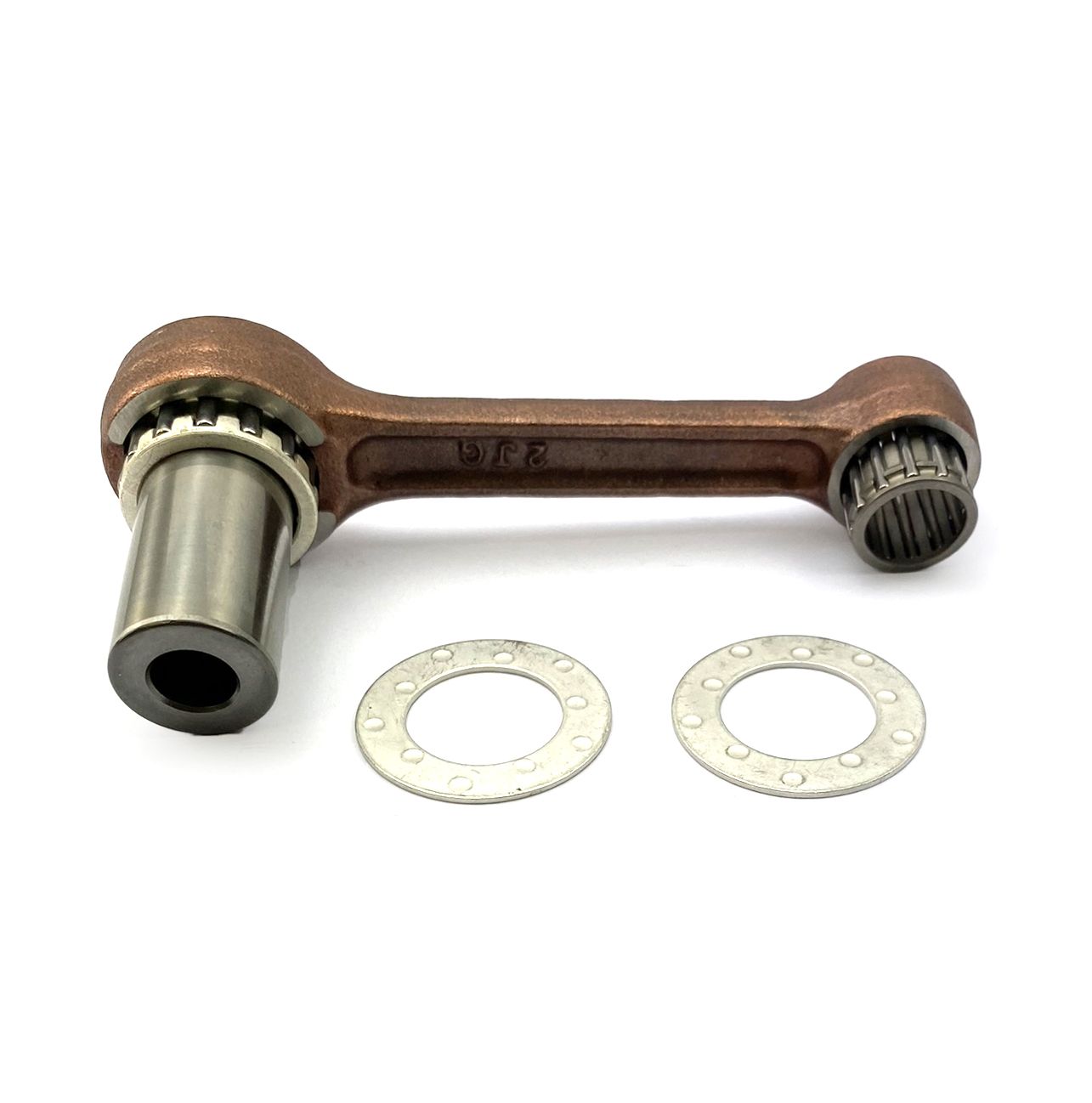

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
– Best value for money
– ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image before ordering to avoid mistakes.

Big End Bearing (mm): 20x26x13.8
Big End Bore (mm): 26.00
Big End Width (mm): 13.98
Center To Center (mm): 96.00
Pin Diameter (mm): 20.00
Pin Length (mm): 43.50
Small End Bearing (mm): 14x18x16.3
Small End Bore (mm): 18.00
Small End Width (mm): 13.98
Washer Thickness (mm): 1.00
