CONNECTING ROD 92-93 KX125, HOT RODS 8102 79-89 KX125

High-quality replacement connecting rod kit designed for Kawasaki KX125 models from 1979 to 1993, ensuring reliable performance and durability. Made from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for strength and longevity. Advanced design features such as side scalloping and vent slots reduce high RPM bearing race distortion, while double-forged construction enhances dimensional consistency. Shot-peening and double-honing strengthen the rod under heavy loads. Small ends are double-drilled to improve lubrication and cooling, critical for wrist pin bearing performance. Thrust washers and crank pin bearings are silver-coated for enhanced lubricity. The kit includes a rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Manufactured from ASTM 4115 material, case-hardened to 58-62 Rc.
• Side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged construction for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under load.
• Double-drilled small ends enhance lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

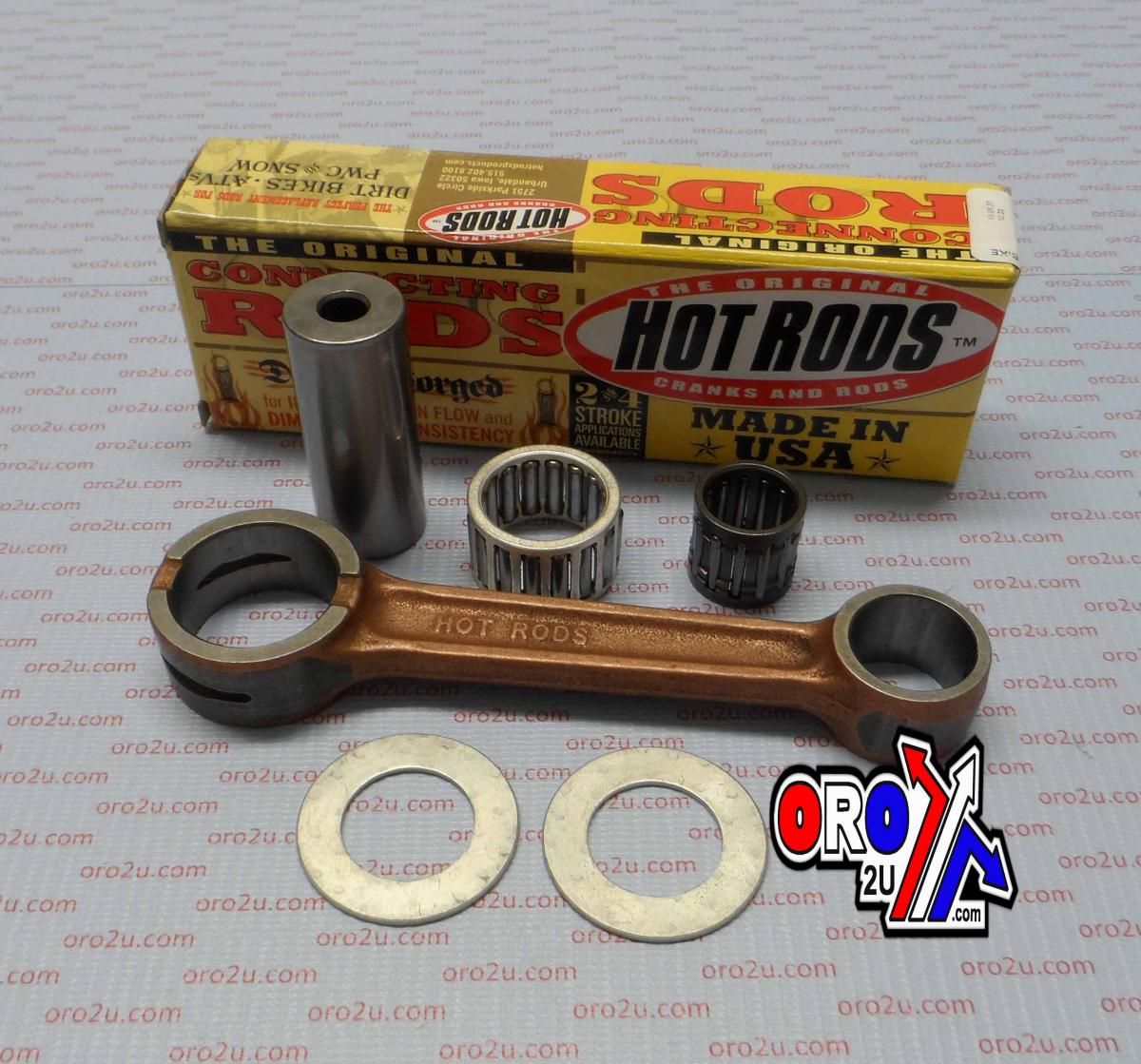

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Center-to-Center Length: 106.00 mm
• Pin Diameter: 22.00 mm
• Pin Length: 50.90 mm
• Big End Bore: 29.00 mm
• Small End Bore: 21.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• 13032-1179
• 13032-1200
• 13044-5008
• 13044-5009
• 13044-5017
• 13044-5018
• 13044-5030
• 13044-5035
• 13044-5047
• 13044-5065

Vehicle Compatibility:

• 1979-1993 Kawasaki KX125

Additional models:

• 1988 Kawasaki KDX200
• 1987 Kawasaki KDX200
• 1986 Kawasaki KDX200

Part Number: 56-896.HR
