CONNECTING ROD 85-87 CR125, HOTRODS 8161 HONDA MX CR122

HONDA
CR 125R 1985 – 1987,

Connecting rod rebuild Kit. HOTRODS 8161

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

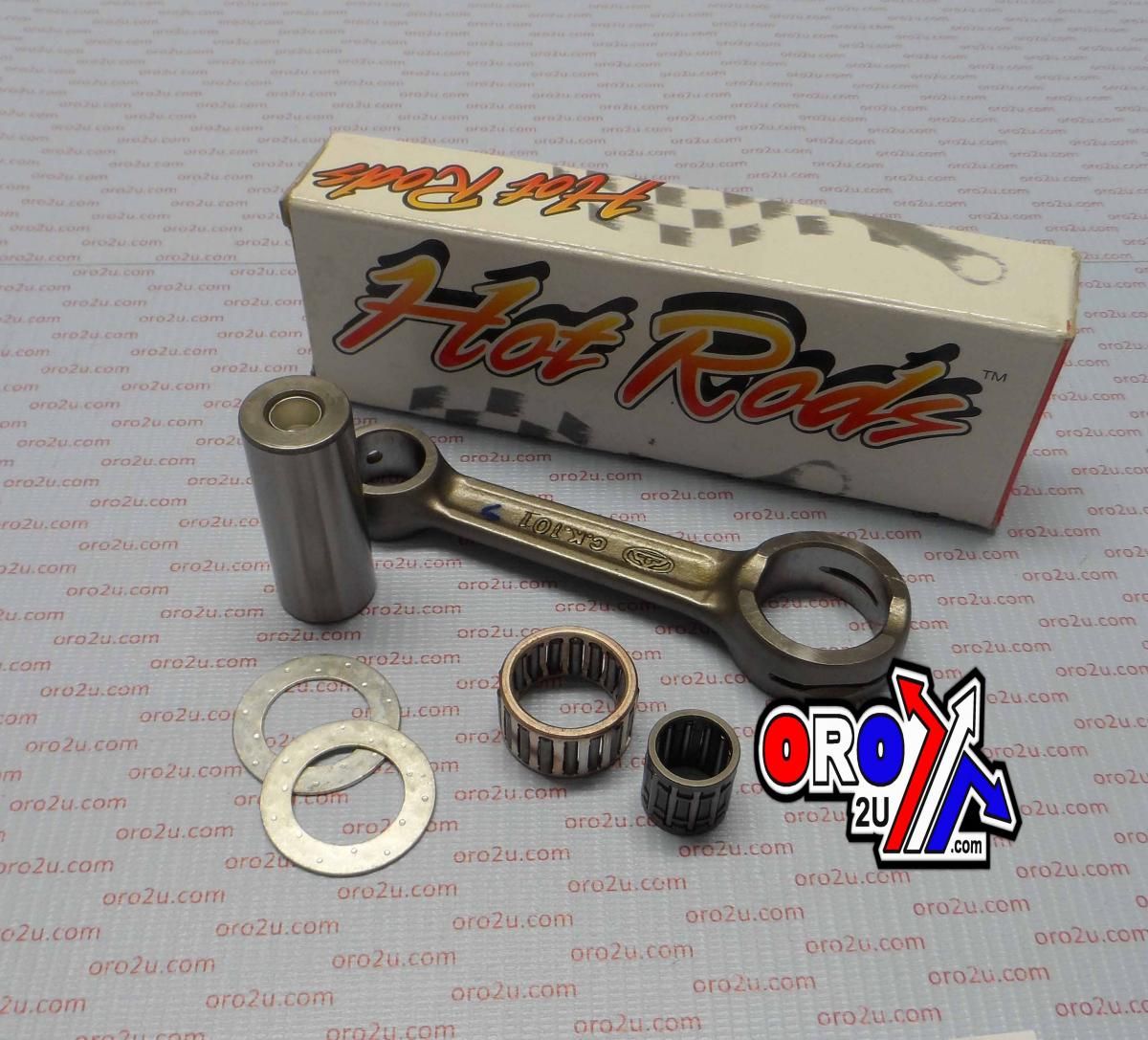

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Technical Specifications:
Big End Bearing (mm):22x28x16
Big End Bore (mm): 28.00
Big End Width (mm): 16.00
Center To Center (mm): 104.00
Pin Diameter (mm): 22.00
Pin Length (mm): 54.00
Small End Bearing (mm): 14x18x19

Part No. 56-930.HR / 56-930_HR (oro2u.com)

Cross reference numbers ONLY.
HONDA: 13200-KA3-760 HONDA: 13200-KS6-305 HONDA: 13200-KS6-306
