| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
CONNECTING ROD 85-87 CR125
HONDA
CR125R 1985-1987,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09003
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

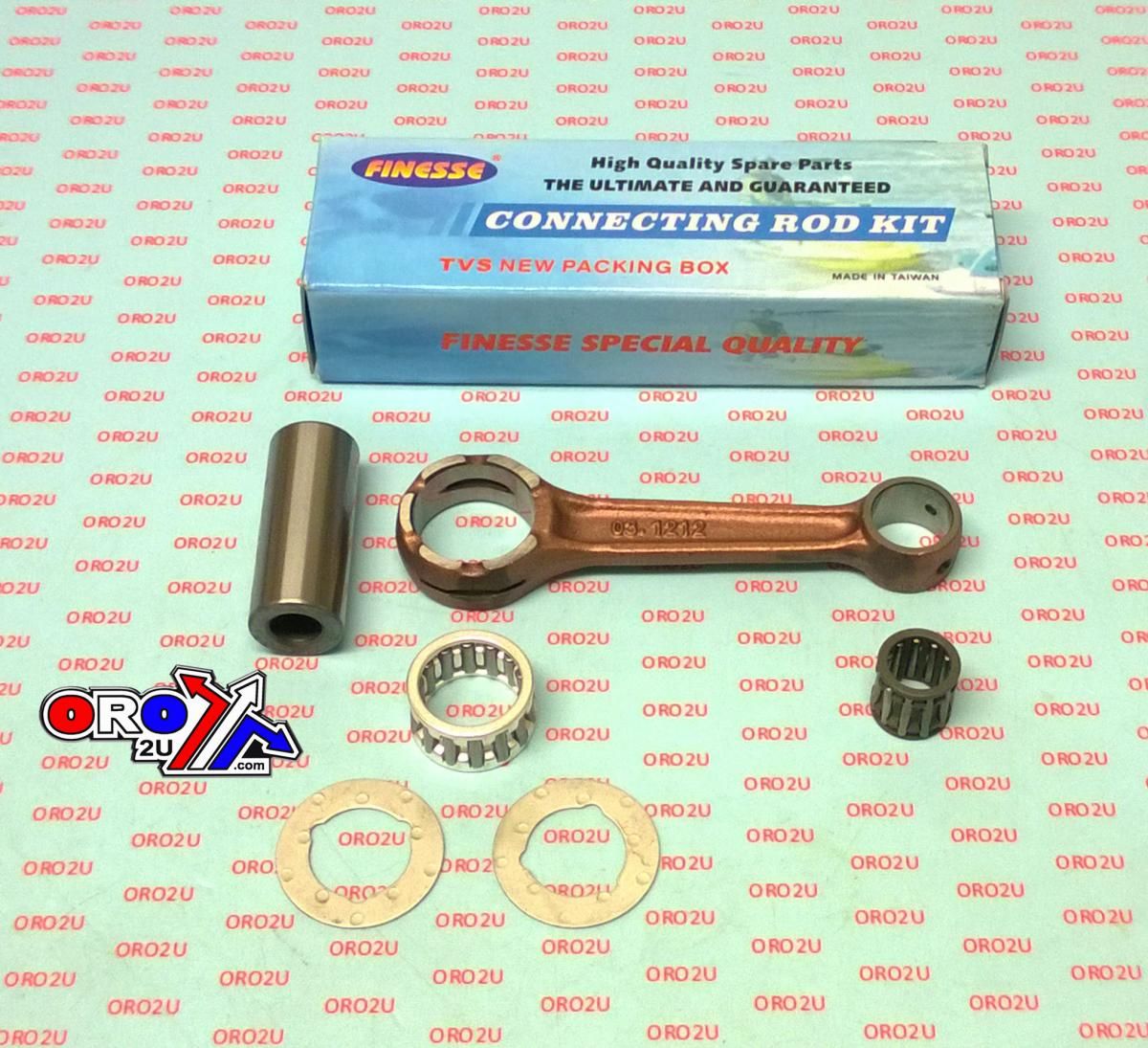

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
104 |
|
Small End Bearing |
14x19x18.7 |
|
Small End Bore Ø |
19 |
|
Small End Width |
16 |
|
Big End Bearing |
22x28x16 |
|
Big End Bore Ø |
28 |
|
Big End Width |
16 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
53.80 |
|
Washer Thickness |
22x37x1.0 |
Part No. 56-930.DR (oro2u.com)
Cross reference numbers ONLY.
13200-KA3-760 HONDA: 13200-KS6-305, 13200-KS6-306, HOTRODS 8161, 30.1212,
