CONNECTING ROD 84-18 KX 60/65, HOTRODS 8128

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX60/KX65 and Suzuki RM60/RM65 models. This kit offers exceptional strength, durability, and precision engineering for optimal performance under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior durability under extreme loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide added lubricity.

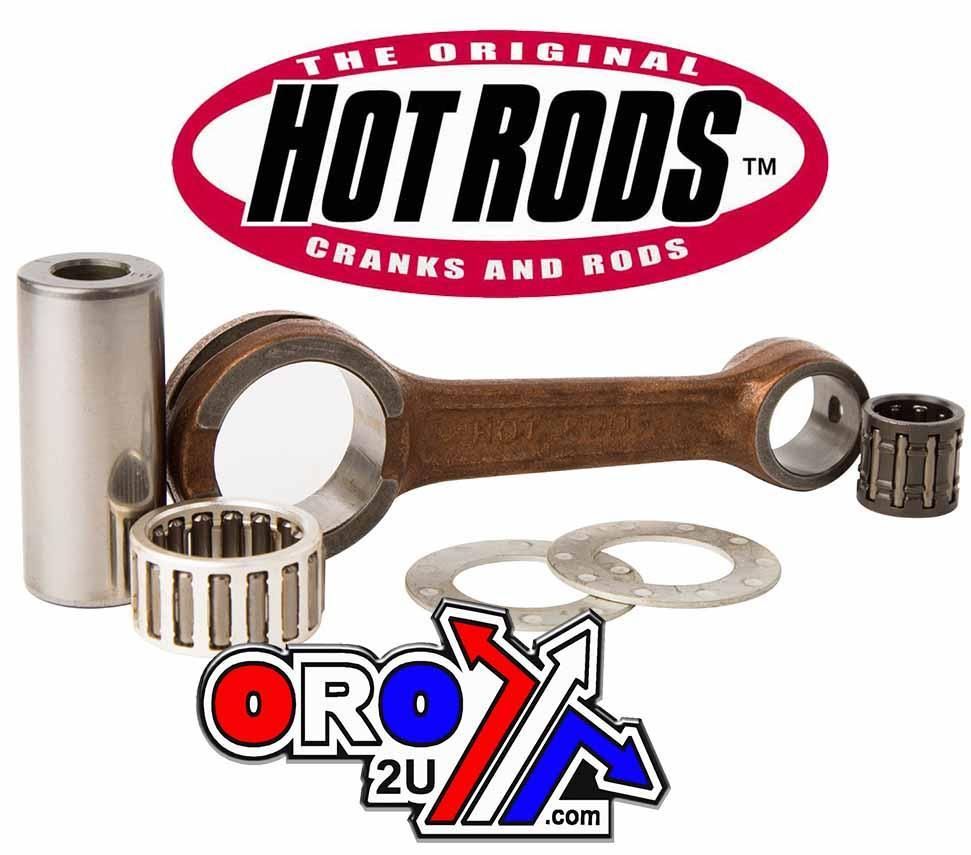

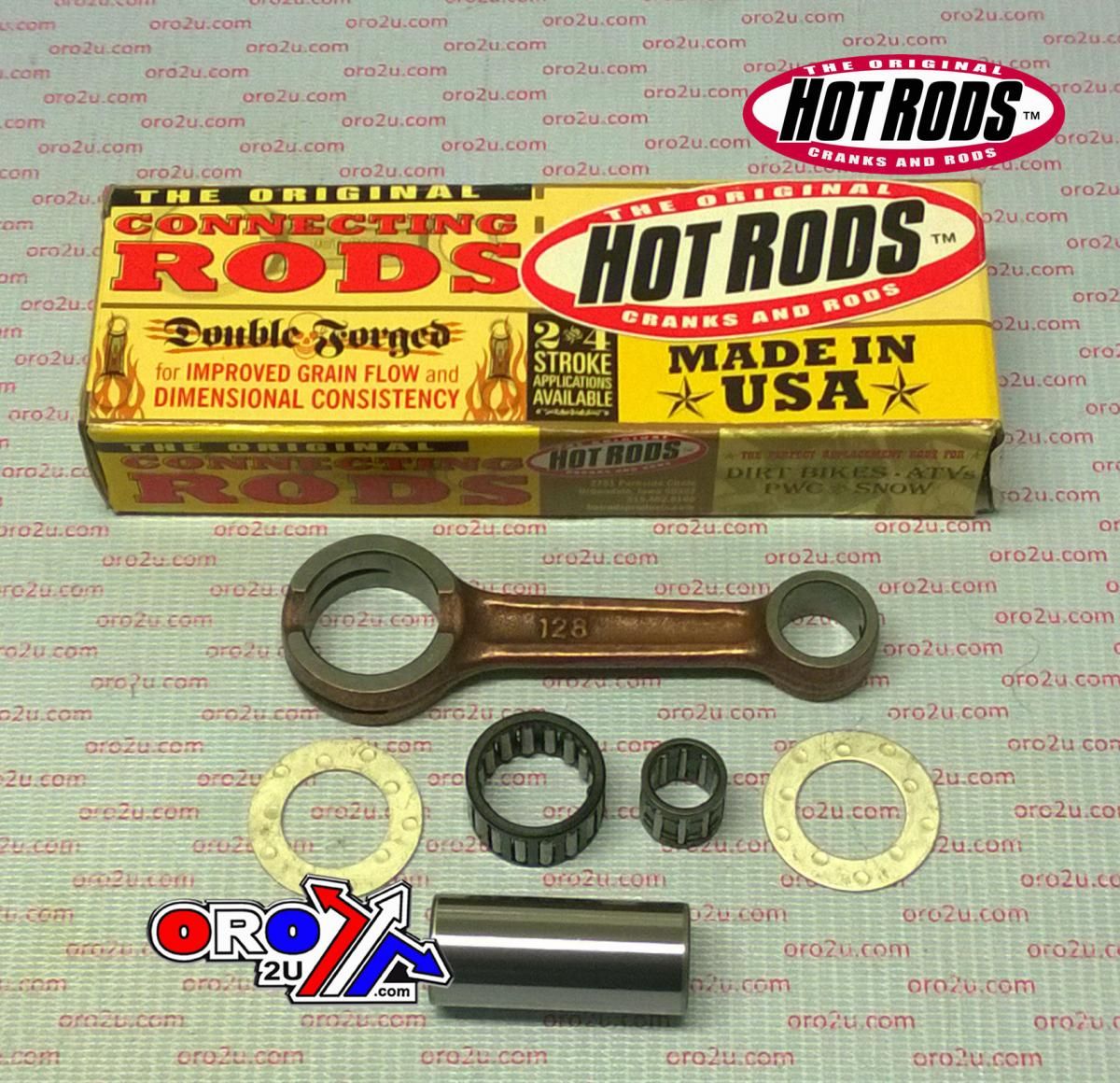

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

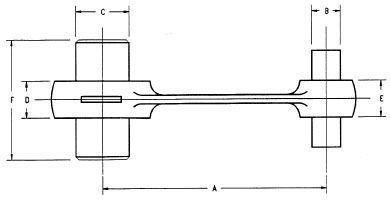

Technical Specifications:

• Big End Bore: 26.00 mm
• Center to Center: 85.00 mm
• Pin Diameter: 20.00 mm
• Pin Length: 45.80 mm
• Small End Bore: 16.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1246, 13044-5024
• Suzuki: K1303-21246

Compatibility:
Fits the following models:

Kawasaki:

• 1985-2003 KX60
• 2000-2018 KX65 (including Monster Energy editions)

Suzuki:

• RM60
• RM65

Part Number: 56-114.HR
