CONNECTING ROD 83-04 KX500, NAMURA RX-20009 / MX-09034 KAWASAKI, MX-09034 RX-20009

CONNECTING ROD REBUILD KIT NAMURA RX-20009

KAWASAKI
KX500 1983-2004,

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 145, B = 19, C = 26, D = 22, E = 22, F = 54.5-

Center-Center 145mm.

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

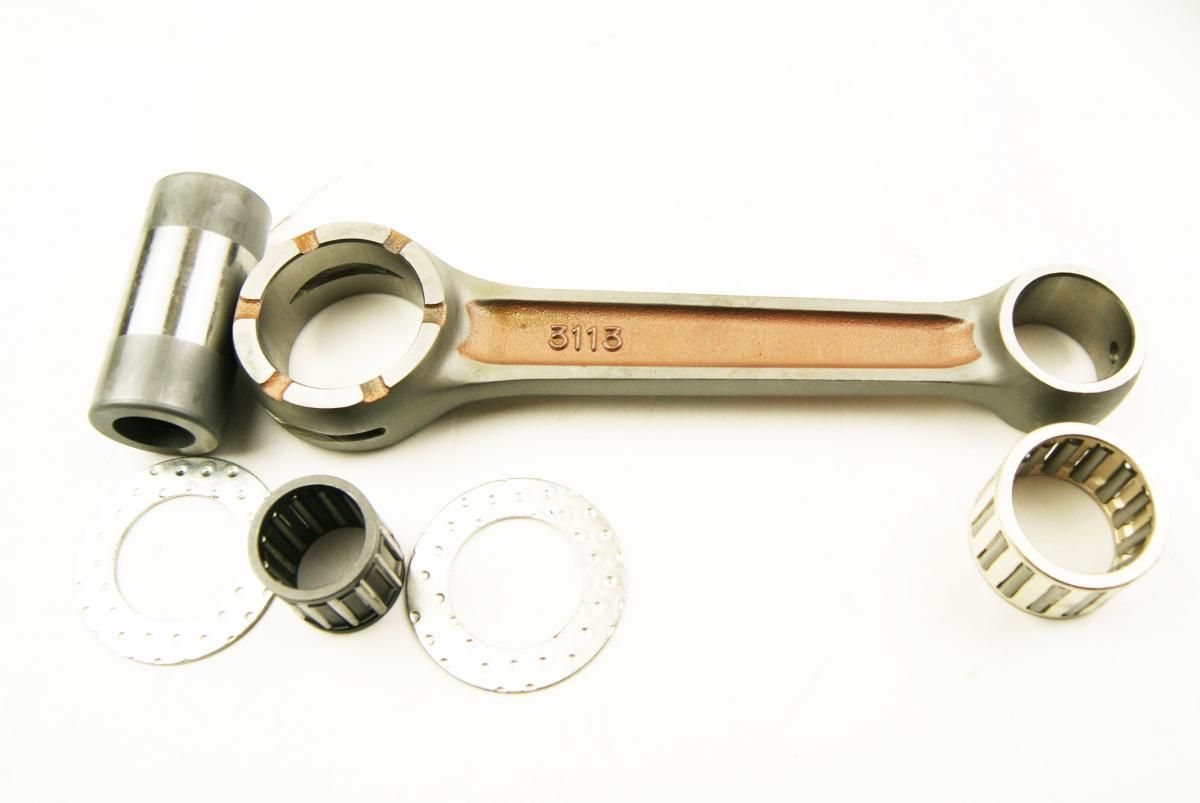

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Cross Reference Numbers Only:
13032-1184, KAWASAKI: 13044-4077, KAWASAKI: 13044-5048, KAWASAKI: 13044-5072 56-115.DR
KAWASAKI: 13044-5076, KAWASAKI: 13044-5077, HOTRODS 8148, WOSSNER P2039 ,

S/SEED FROM 56-115.DR TO 56-115.NM
