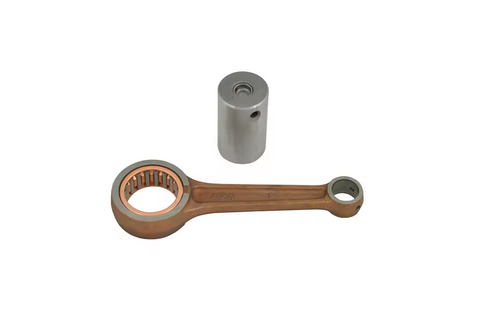

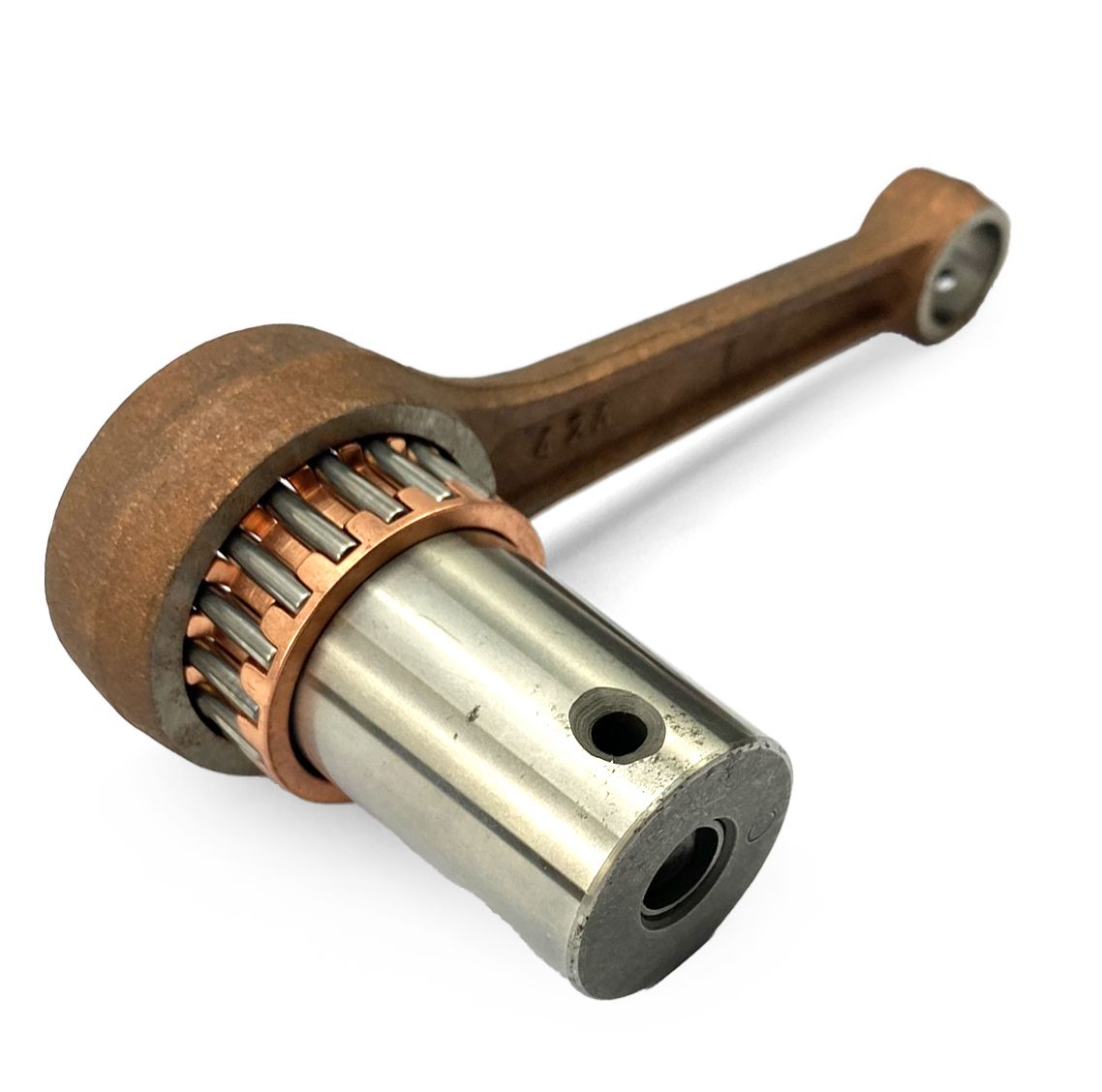

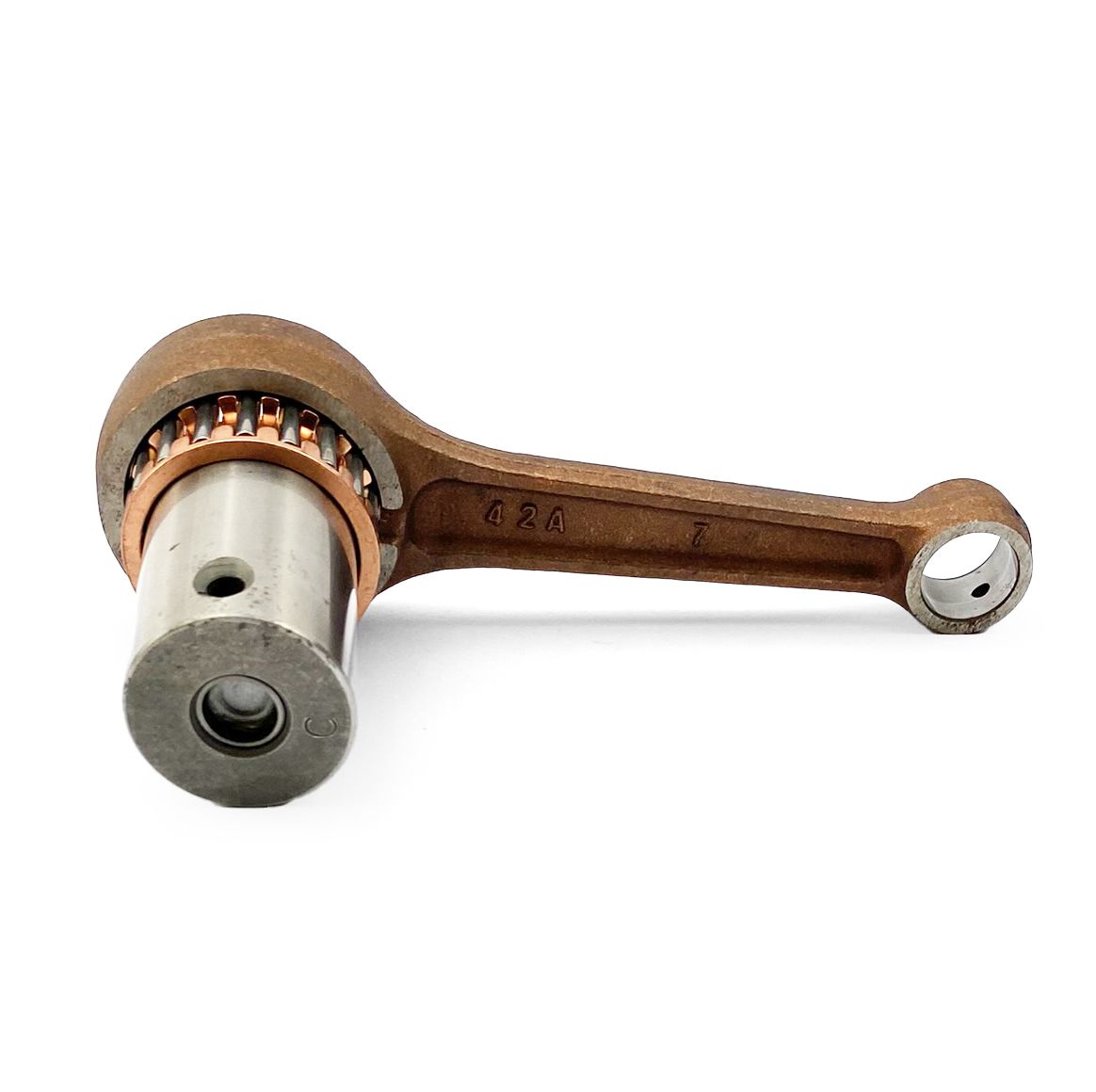

CONNECTING ROD 1986-2000 SUZUKI DR200 12161-42A01

This connecting rod rebuild kit is designed for Suzuki DR200 series motorcycles, offering a durable and high-quality solution for engine maintenance and repair. Manufactured from certified chrome alloy steel, it meets or exceeds OE standards for strength and reliability.

Features:

• Heavy-duty OE replacement connecting rod for enhanced durability
• Constructed from SNCM220 certified chrome alloy steel for superior strength
• Crankpins made from hot-rolled ASTM steel and case-hardened for longevity
• Caged needle roller bearing design supports high RPM performance
• Bronze phosphor thrust washers with silver coating for added durability
• Complete rod assembly includes rod, crankpin, crankpin bearing, and top-end bearing (if required)
• Fully compatible with aftermarket and OE crankshafts

Specifications:

• Rod Length (Centre-to-Centre): 116 mm
• Crank Pin Length: 52.00 mm
• Crank Pin Diameter: 31 mm
• Small End Diameter: 16 mm
• Small End Thickness: 14 mm
• Big End Diameter: 31 mm
• Big End Thickness: 18 mm
• Washers: None
• Small End Bearing: None

Cross-Reference OEM Part Numbers:

• 12161-42A01 – Connecting Rod
• 09263-31008-0B0 – Roller Bearing
• 12210-42A01 – Crank Pin

Vehicle Fitments:

• Suzuki DR200 (1986–2000)
• Suzuki DR200SE (1986–2020)
• Suzuki Van Van 200 (2017)
• Suzuki DF200 (1996–2000)
