| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |

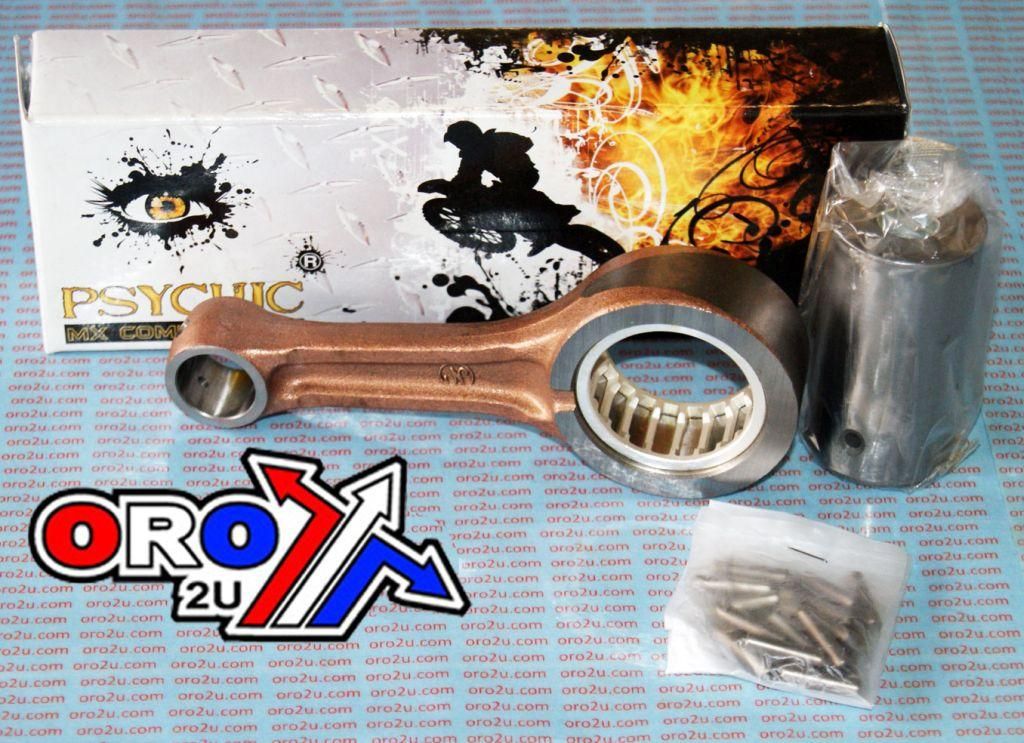

CONNECTING ROD 10-18 YZ450F, KIT PSYCHIC MX-09090 YAMAHA
CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09090
YAMAHA
YZF450 / YZ450F 2010-2018,
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
103 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
18 |
|
Small End Width |
18 |
|
Big End Bearing |
34x42x20.8 |
|
Big End Bore Ø |
42 |
|
Big End Width |
21 |
|
Big End Pin Ø |
34 |
|
Big End Pin Length |
61 |
|
Washer Thickness |
None |
SIZE PLEASE SEE DRAWING SIZE mm. A = 103, B = 18, C = 34, D = 18, E = 21, F = 61
Part No. 56-857.DR (oro2u.com)
Cross reference numbers ONLY.
Bearing MX-09090B,
Pin, Crank 5TG-11681-01-00,
Bearing 93310-63458-00,
Rod, Connecting 33D-11651-03-00,
