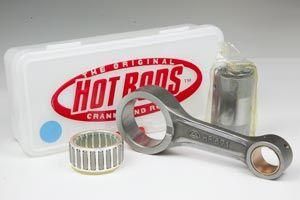

CONNECTING ROD 08-14 KFX450, HOT RODS 8671 KAWASAKI ATV

The Hot Rods Connecting Rod Kit (8671) is a premium replacement part designed for the Kawasaki KFX 450R models. Manufactured with precision and durability in mind, this kit ensures high performance and reliability in demanding conditions. It includes all necessary components for installation and features advanced design for reduced wear and improved lubrication.

Features:

• Made from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for enhanced durability.
• Side scalloping and vent slots in the big end reduce high-rpm bearing race distortion.
• Double-forged rods ensure consistent grain flow and dimensional accuracy.
• Shot-peened and double-honed for added strength under heavy loads.
• Double-drilled small ends provide superior lubrication and cooling to the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings enhance lubricity.
• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): 34x42x19.65
• Big End Bore (mm): 42.02
• Big End Width (mm): 20.00
• Center to Center (mm): 107.00
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.00
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 21.01

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-0054

Vehicle Fitments:

• 2014 Kawasaki KSF450B KFX450R
• 2013 Kawasaki KSF450B KFX450R
• 2012 Kawasaki KSF450B KFX450R
• 2011 Kawasaki KSF450B KFX450R
• 2010 Kawasaki KSF450B KFX450R
• 2009 Kawasaki KSF450B KFX450R
• 2008 Kawasaki KSF450B KFX450R
• 2009 Kawasaki KSF450B-B KFX450R Monster Energy

Part Number: 8671
