CONNECTING ROD 07-20 CRF150, HOT RODS 8646 13000-KSE-670, 13000-KSE-671

Honda
CRF150R / RB 2007 – 2021,

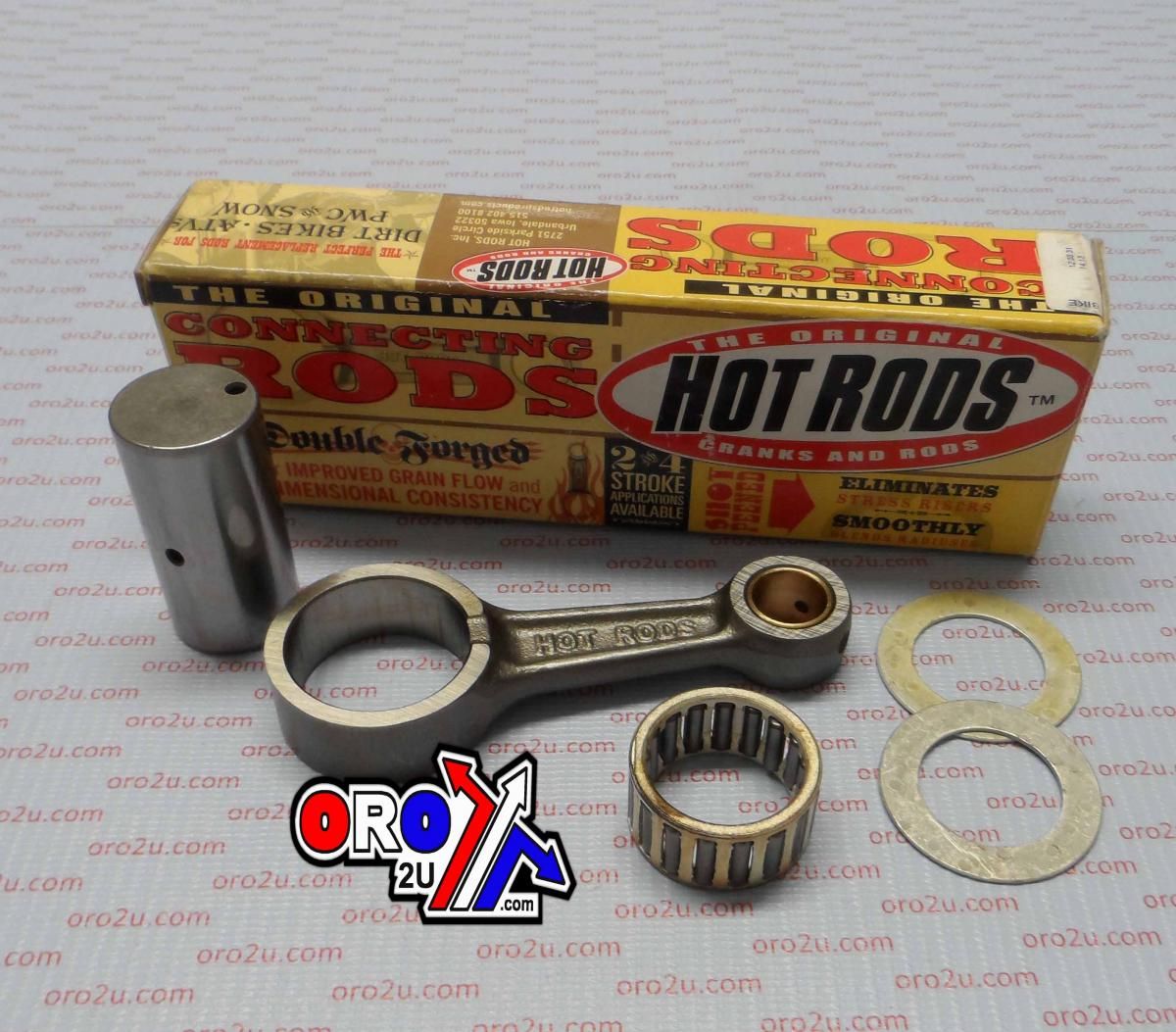

CONNECTING CONROD ROD REBUILD KIT HOTRODS 8646

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

SIZE	MM
Centre 2 Centre	75.40
Small End Bearing	None
Small End Bore Ø	14
Small End Width	14
Big End Bearing	25x32x15.7
Big End Bore Ø	32
Big End Width	15.75
Big End Pin Ø	25
Big End Pin Length	50
Washer Thickness	0.94

Part No. 56-934.HR / 56-934_HR (oro2u.com)

Cross reference numbers.
13000-KSE-670, HOT RODS 8646, WOSSNER P4024, WISECO WPR204, MX-09046, 03.1227, 13000-KSE-670 13000-KSE-671

2007 CRF150R A – CRANKSHAFT / PISTON

2007 CRF150RB A – CRANKSHAFT / PISTON

2008 CRF150R A – CRANKSHAFT / PISTON

2008 CRF150RB A – CRANKSHAFT / PISTON

2009 CRF150R 2A – CRANKSHAFT / PISTON

2009 CRF150R A – CRANKSHAFT / PISTON

2009 CRF150RB 2A – CRANKSHAFT / PISTON

2009 CRF150RB A – CRANKSHAFT / PISTON

2012 CRF150R A – CRANKSHAFT / PISTON

2012 CRF150RB A – CRANKSHAFT / PISTON

2013 CRF150R AC – CRANKSHAFT / PISTON

2013 CRF150RB AC – CRANKSHAFT / PISTON

2014 CRF150R AC – CRANKSHAFT / PISTON

2014 CRF150RB AC – CRANKSHAFT / PISTON

2015 CRF150R AC – CRANKSHAFT / PISTON

2015 CRF150RB AC – CRANKSHAFT / PISTON

2007 CRF150R A – CRANKSHAFT / PISTON

2007 CRF150RB A – CRANKSHAFT / PISTON

2008 CRF150R A – CRANKSHAFT / PISTON

2008 CRF150RB A – CRANKSHAFT / PISTON

2009 CRF150R 2A – CRANKSHAFT / PISTON

2009 CRF150R A – CRANKSHAFT / PISTON

2009 CRF150RB 2A – CRANKSHAFT / PISTON

2009 CRF150RB A – CRANKSHAFT / PISTON

2012 CRF150R A – CRANKSHAFT / PISTON

2012 CRF150RB A – CRANKSHAFT / PISTON

2013 CRF150R AC – CRANKSHAFT / PISTON

2013 CRF150RB AC – CRANKSHAFT / PISTON

2014 CRF150R AC – CRANKSHAFT / PISTON

2014 CRF150RB AC – CRANKSHAFT / PISTON

2015 CRF150R AC – CRANKSHAFT / PISTON

2015 CRF150RB AC – CRANKSHAFT / PISTON

2016 CRF150R AC – CRANKSHAFT / PISTON

2016 CRF150RB AC – CRANKSHAFT / PISTON

2017 CRF150R AC – CRANKSHAFT / PISTON

2017 CRF150RB AC – CRANKSHAFT / PISTON

2018 CRF150R AC – CRANKSHAFT / PISTON

2018 CRF150RB AC – CRANKSHAFT / PISTON

2019 CRF150R AC – CRANKSHAFT / PISTON

2019 CRF150RB AC – CRANKSHAFT / PISTON

2020 CRF150R AC – CRANKSHAFT / PISTON

2020 CRF150RB AC – CRANKSHAFT / PISTON

2021 CRF150R AC – CRANKSHAFT / PISTON

2021 CRF150RB AC – CRANKSHAFT / PISTON
