| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |

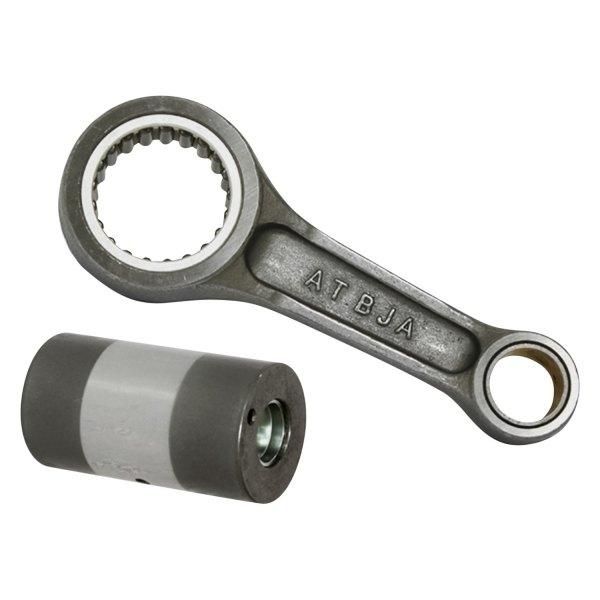

CONNECTING ROD 06-09 LTR450, BRONCO AT-09190 SUZUKI ATV
SUZUKI
LT-R 450 2006-2009,

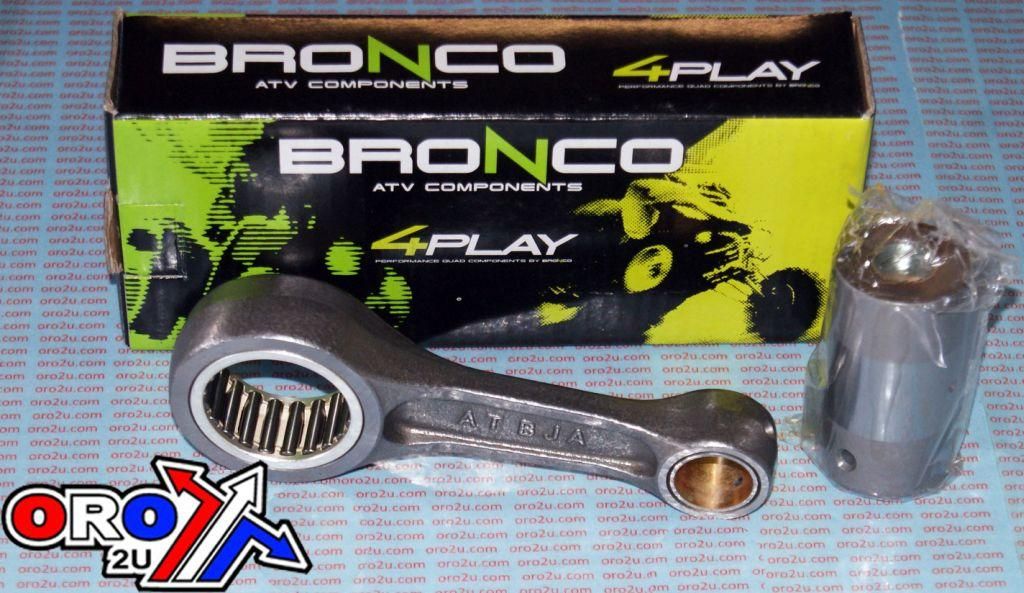

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09190
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
107 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
19 |
|
Small End Width |
19 |
|
Big End Bearing |
34x42x22 |
|
Big End Bore Ø |
42 |
|
Big End Width |
22 |
|
Big End Pin Ø |
34 |
|
Big End Pin Length |
61 |
|
Washer Thickness |
None |
Part No. 56-274.DR (oro2u.com)
Cross reference numbers.
12160-45G10 , 12161-45G00,
