| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
CONNECTING ROD 05-19 YZ125, PSYCHIC MX-09084 YAMAHA MX
YAMAHA
YZ125 2005 – 2019,

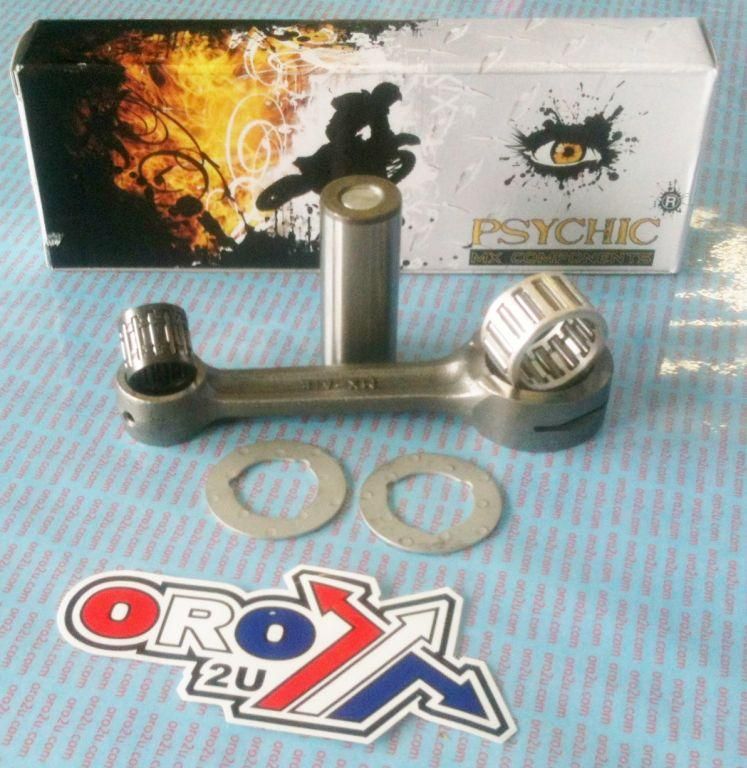

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09084
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
102 |
|
Small End Bearing |
15x19x17.2 |
|
Small End Bore Ø |
19 |
|
Small End Width |
17 |
|
Big End Bearing |
22x29x16.0 |
|
Big End Bore Ø |
29 |
|
Big End Width |
16 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
54.20 |
|
Washer Thickness |
22×34.5×1.50 |
Part No. 56-159.DR (oro2u.com)
Cross reference numbers ONLY.
36E, HOT RODS 8629, 1C3-11651-00-00M, WOSSNER P2018, PSYCHIC MX-09084, RY-2205,
Connecting Rod Assy 1C3-11650-00-00,
Rod Connecting 1C3-11651-00-00,
Pin Crank 1 3JD-11681-10-00,
Washer 90209-22326-00,
Bearing 93310-52238-00,
Bearing 93310-21510-00
