CONNECTING ROD 04-17 CRF250R, HOTRODS 8616 CRF250X 04-09

Heavy-duty connecting rod kit for Honda CRF250R (2004–2017) and CRF250X (2004–2017), designed for reliability and performance. Manufactured with hot-rolled ASTM 4115 steel and precision-engineered to meet demanding requirements, this kit includes all necessary components for a complete rebuild.

Features

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior durability under heavy loads.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

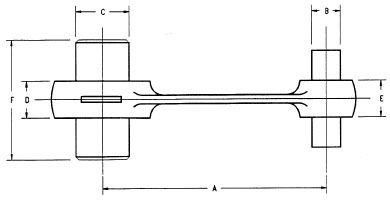

Specifications

• Centre-to-Centre: 90.00 mm
• Small End Bearing: Bushing
• Big End Bearing: 30x38x18 mm
• Big End Bore: 38.00 mm
• Big End Width: 17.80 mm
• Pin Diameter: 30.00 mm
• Pin Length: 52.85 mm

Included Items

• (1) Connecting rod
• (1) Crank pin
• (2) Thrust washers
• (1) Needle bearing

Cross Reference OEM Part Numbers

• Honda: 13000-KRN-670
• Honda: 13000-KRN-850
• Honda: 13000-KRN-A00
• Honda: 13000-KRN-A10
• Honda: 13000-KRN-A41
• Honda: 13000-KSC-670
• Honda: 13000-KSC-671
• Honda: 13000-KSC-A10

Vehicle Fitments

Honda CRF250R

• 2004–2017

Honda CRF250X

• 2004–2017

Part Number: 56-935.HR
