CONNECTING ROD 04-11 RM125, HOT RODS 8615 SUZUKI MX

Connecting rod kit for Suzuki RM125 (2004–2008), designed as a high-quality replacement. Manufactured with advanced materials and processes to ensure superior strength, durability, and performance, especially under high-rpm and heavy-load conditions. This complete kit includes all components required for a reliable rebuild.

Features

• High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Advanced design with side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed rods for added durability under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

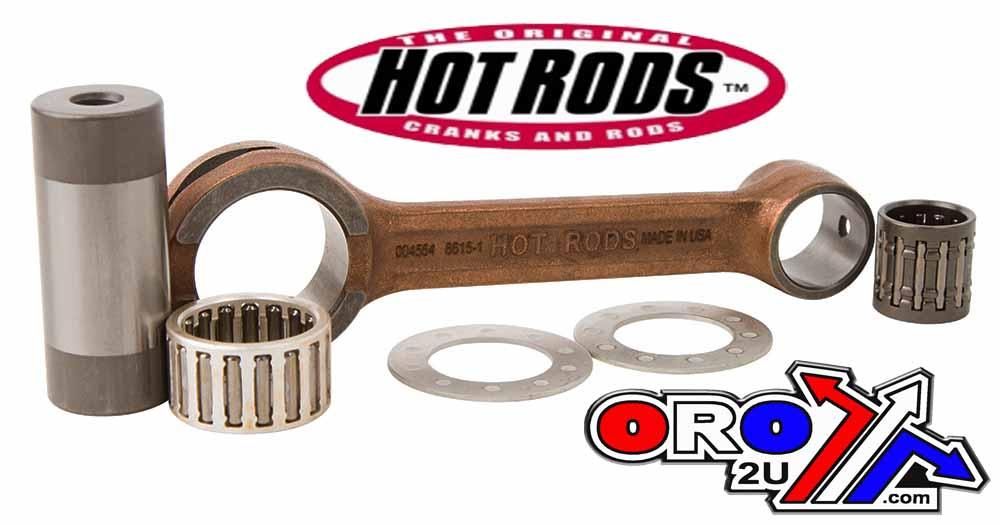

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications

• Center-to-Center: 110.00 mm
• Big End Bearing: 22x28x16 mm
• Big End Bore: 28.00 mm
• Big End Width: 15.90 mm
• Pin Diameter: 22.00 mm
• Pin Length: 52.70 mm
• Small End Bearing: 15x19x19.5 mm

Cross Reference OEM Part Numbers

• Suzuki: 12161-36E11
• Suzuki: 12161-36E12
• Suzuki: 12161-36F20
• Suzuki: 12161-36F21

Vehicle Fitments

• Suzuki RM125: 2004–2008

Part Number: 56-925.HR
