| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |
CONNECTING ROD 04-05 TRX450R, BRONCO AT-09194 HONDA KIT
HONDA
2004-2005 TRX 450ER,
2004-2005 TRX 450R,
CONROD Connecting rod Rebuild kit Bronco AT-09194
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

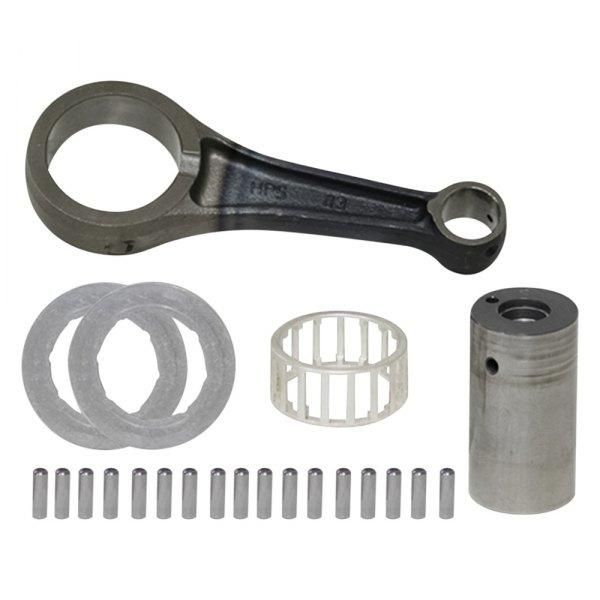

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
| SIZE |
MM |
|
Centre 2 Centre |
111.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
21 |
|
Small End Width |
19 |
|
Big End Bearing |
35x46x23.2 |
|
Big End Bore Ø |
46 |
|
Big End Width |
23.50 |
|
Big End Pin Ø |
35 |
|
Big End Pin Length |
62.70 |
|
Washer Thickness |
35x54x1.0 |
Part No. 56-231.BR (oro2u.com)
Cross Reference Numbers Only:
13000-HP1-670,
