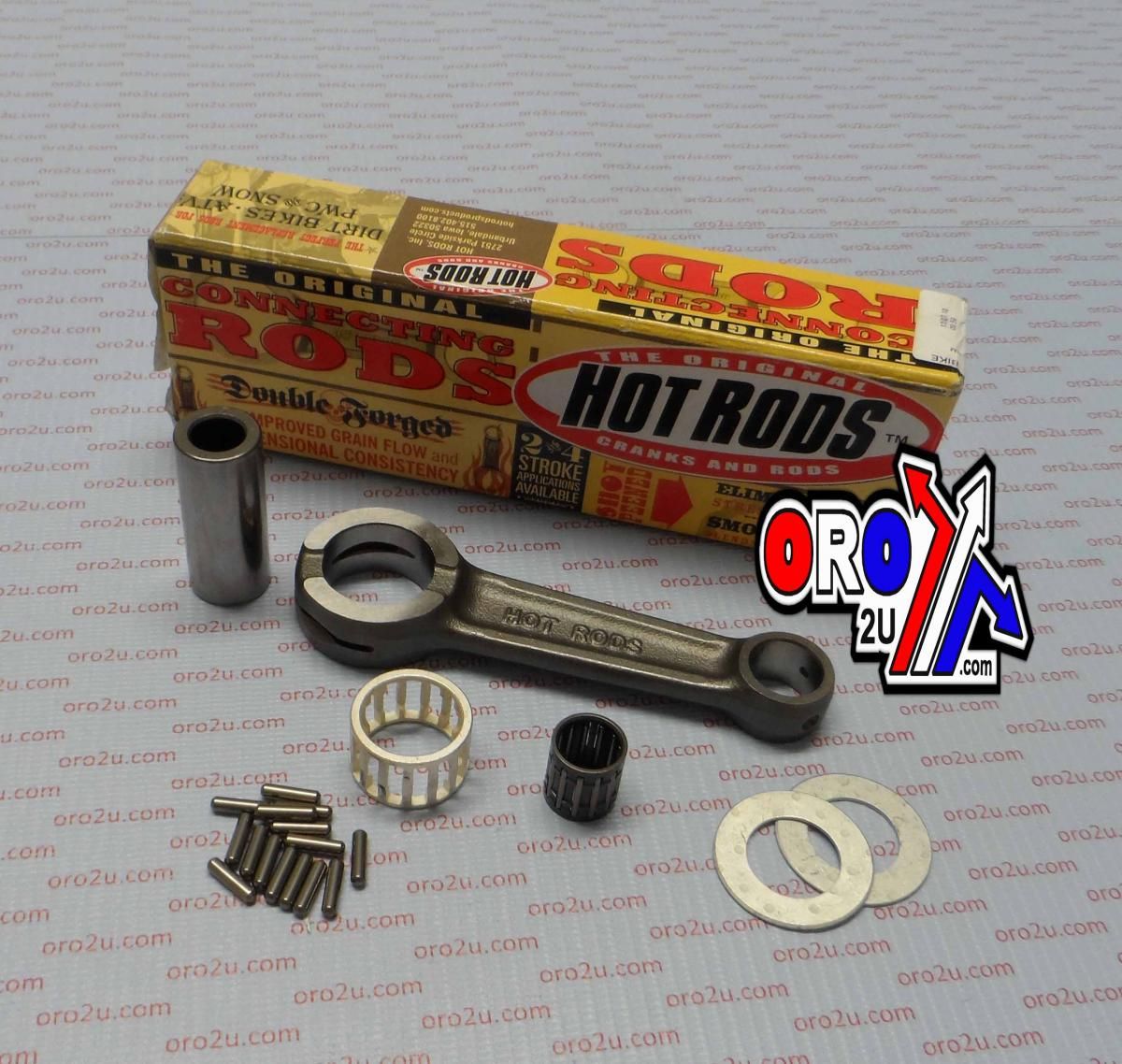

CONNECTING ROD 03-08 KTM65, HOT ROD 8626 KIT

Heavy-duty connecting rod kit designed for KTM 65 SX (2003-2007) and KTM 65 XC (2002-2008) models. This premium replacement kit delivers exceptional durability and performance, including all components required for a complete rebuild.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double drilled to provide extra lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings feature silver coating for added lubricity.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Centre to Centre: 88.00 mm
• Big End Bore: 24.00 mm
• Pin Diameter: 18.00 mm
• Pin Length: 42.00 mm
• Small End Bore: 15.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
KTM: 46030015100, HOTRODS 8626

Vehicle Fitment:

• KTM 65 SX: 2003, 2004, 2005, 2006, 2007.
• KTM 65 XC: 2002, 2003, 2004, 2005, 2006, 2007, 2008.

Part Number: 56-960.HR
