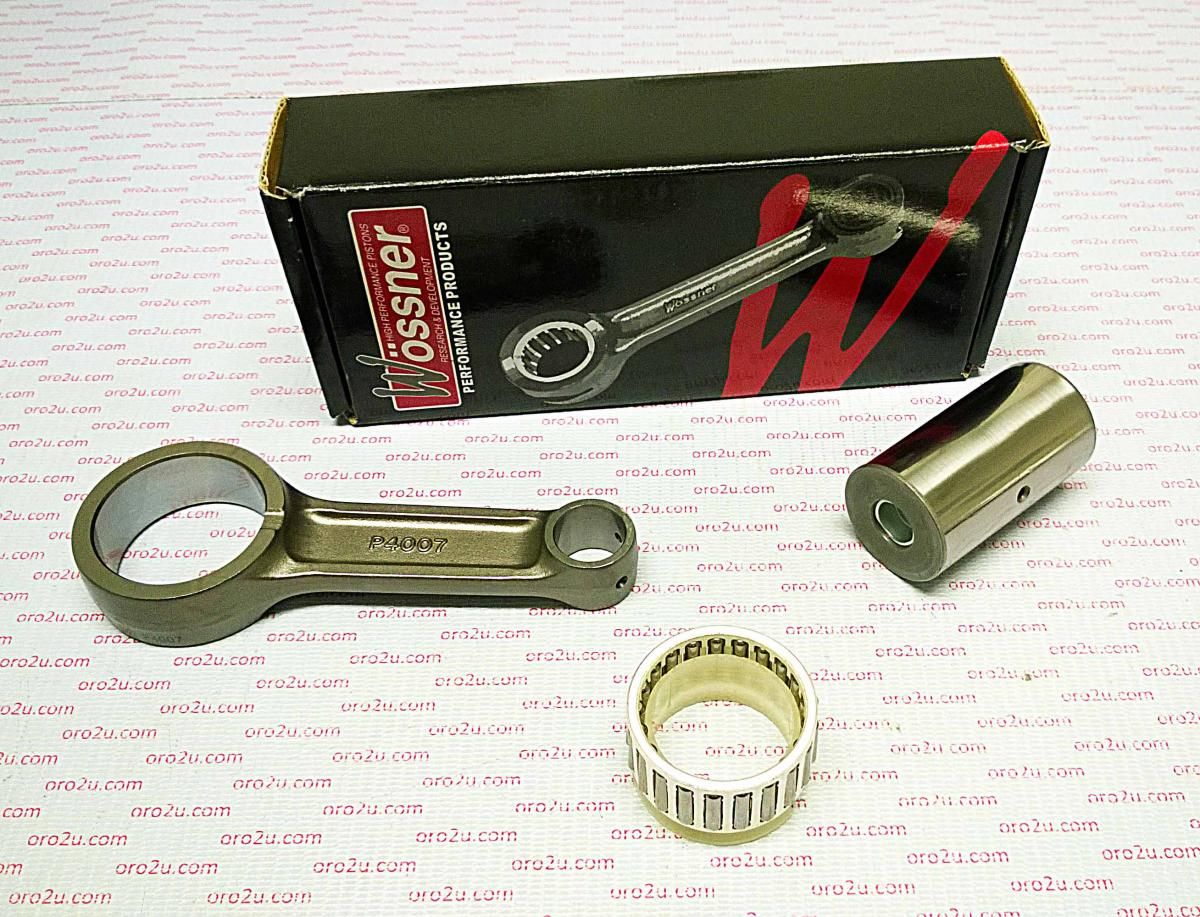

CONNECTING ROD 03-05 YZF450, WOSSNER P4007 YAMAHA MX

Part No. 56-911.WO (oro2u.com)
Yamaha WR 450F 2004 – 2006 ,
Yamaha YZ 450F 2003 – 2005 ,
CONNECTING ROD REBUILD KIT WOSSNER P4007
Cross reference numbers.

YAMAHA: 5TA-11651-00-00 YAMAHA: 5XD-11651-00-00
Technical Specifications:
Big End Bearing (mm): 34x42x20
Big End Bore (mm): 42.00

Big End Width (mm): 19.95
Center To Center (mm): 103.50
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): Bushing

Cross reference numbers.
ATHENA P40321022, 5XD-11651-00-00, PSYCHIC MX-09086, HOTRODS 8621, PROX 03.2423, WISECO WPR197, WOSSNER P4007, PROX 03-2423
