CONNECTING ROD 02-18 RM85, HOT RODS 8610 SUZUKI

The Hot Rods connecting rod kit (Part No. 8610) is a premium replacement designed for Suzuki RM85 models. Engineered with precision and durability, it provides exceptional performance in high-RPM applications, ensuring reliability under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength and durability.
• Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for superior strength and reliability.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.

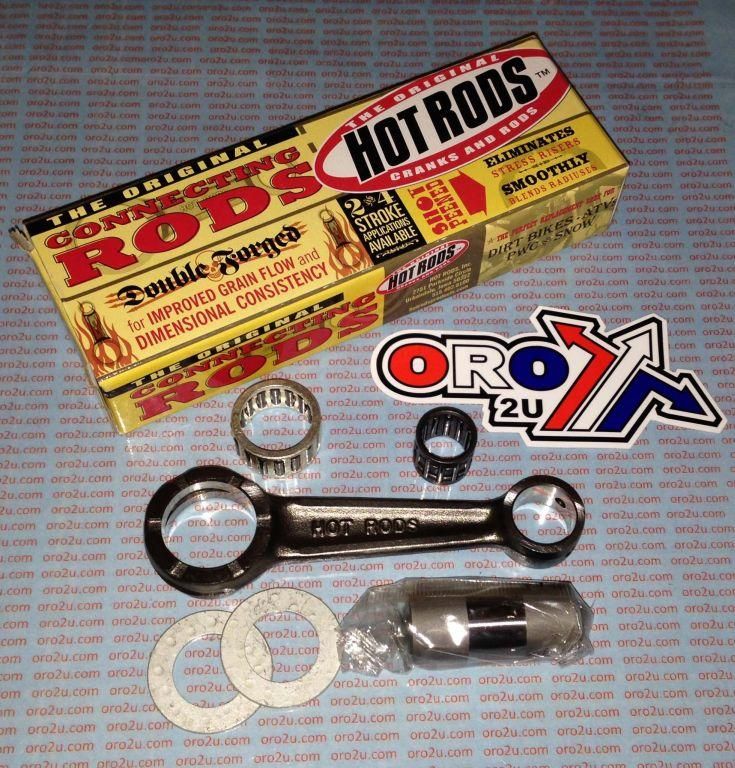

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 93.50
• B (Big End Bore Diameter): 26.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 14.00
• E (Small End Width): N/A
• F (Pin Length): 44.60
• Washer Thickness: 1.50
• Big End Bearing: 20 x 26 x 13.7 mm

Vehicle Compatibility:

• Suzuki RM85: 2002–2018
• Suzuki RM85L: 2003–2012

Cross-reference OEM Part Numbers:

• Suzuki: 12161-03B00
• Suzuki: 12161-03B01
• Suzuki: 12161-03B02

Part Number:
56-108.HR
