| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |
CONNECTING ROD 02-09 LT-A400, BRONCO AT-09197 SUZUKI ATV
SUZUKI
LT-A400 EIGER 2002-04 / 06-07
LT-A400 KING QUAD 2008-09
LT-A400F EIGER 4WD 2002-07
LT-A400F KING QUAD 2008-17
LT-A400FZ KING QUAD 2011-17
LT-A400 L3,L4 QUAD SPORT 2013-14
LT-A400F L3 4DW KING QUAD AUTO 2013
LT-A400F L4,L5 KING QUAD 2014-2017

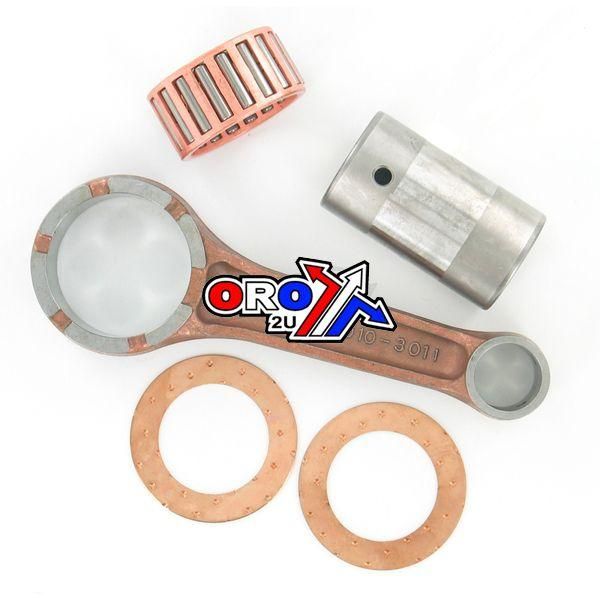

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09197
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
105.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
20 |
|
Small End Width |
22 |
|
Big End Bearing |
34x43x21.70 |
|
Big End Bore Ø |
43 |
|
Big End Width |
22 |
|
Big End Pin Ø |
34 |
|
Big End Pin Length |
59.75 |
|
Washer Thickness |
34x52x1.00 |
Part No. 56-259.BR (oro2u.com)
Cross reference numbers ONLY.
VESRAH VA-3010 VA3010, 0403010,
ROD, CONNECTING 12161-14D00,
PIN, CRANK 12210-38F00,
BEARING (34X43X22) 09263-34005,
WASHER 09160-34003,
2004 Suzuki LT-A400 Eiger Automatic 2×4
2003 Suzuki LT-A400 Eiger Automatic 2×4
