COIL IGNITION & CAP YAMAHA 50-660cc, Warrior Big Bear Raptor & Grizzly ATV, 3KJ-82310-10-00 IYA0001 44-0953.AH 750169, 3KJ-82310-10-00, 4RP-82310-29-00

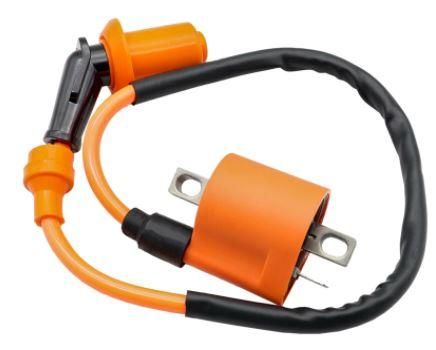

IGNITION COIL

120 Degree Elbow
Voltage: 12 volts
Spark plug cap resistance: ≈4.91KΩ
Measuring primary coil: ≈0.4-0.5Ω
Measuring secondary coil: ≈7.51KΩ

Yamaha Warrior Big Bear Raptor & Grizzly ATV
Yamaha YFM80 Moto 4 Badger 80cc (1986-88)
Yamaha Warrior YFM350XT YFM350XU YFM350
Yamaha YZ80 (1985-2001)
Yamaha YZ125 (1990-2003)
Yamaha YZ250 (1989-2004)
Yamaha YZ490 (1983-1988)
Yamaha YFB250 Timberwolf (1992-2002)
Yamaha TTR230 TT-R230 (2005 – 2013)
Yamaha PW50(1983-2014). PW80(1983-2006)
Yamaha Zuma II 50 CW50 (1997-2001)
Yamaha Grizzly 600 YFM600 1998 – 2001 ATV
Yamaha Raptor 660 YFM660R Limted Edition 2002 – 2003 ATV
Yamaha Razz 50 SH50

Mounting points (center to center): 57mm (2 1/4 inch)
Overall length end to end: 38mm (1 1/2 inch)
Overall width of main body: 33mm (1 3/8 inch)
Overall height of main body: 43mm (17 1/4 inch)

– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale.
– Designed to handle increased power loads.
– ORO Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image before ordering to avoid mistakes.

– Note. No Returns on Electrical Parts.

Part No. 44-0953.AH (oro2u.com)

Cross reference numbers ONLY.
3KJ-82310-10-00,   ARROWHEAD IYA0001
OEM Number: 4ST-H2310-00, 3KJ-82310-10, 5LW-H2310-00 e 5LW-H2310-01
Replace for Parts: 750169, 3KJ-82310-10-00, 4RP-82310-29-00

Yamaha ATV
YFM 350 Big Bear 2WD 1999,
YFM 350 Big Bear 4WD 1998-99,
YFM 350 RAPTOR 2004-11,
YFM 400 Grizzly 2007,
YFM 400 Grizzly 4WD 2008,
YFM 400 Kodiak 2WD 2000-04,
YFM 400 Kodiak 4WD 1999-06,
YFM 450 Grizzly 4WD 2007-11,
YFM 450 Kodiak 4WD 2003-06,
YFM 450 Wolverine 4WD 2006-10,
YFM 660 Grizzly 2002-08,
YFM 660 Grizzly 4WD 2003-04,
