Champion Spark Plug RC10WMPB3 (CCH9013)

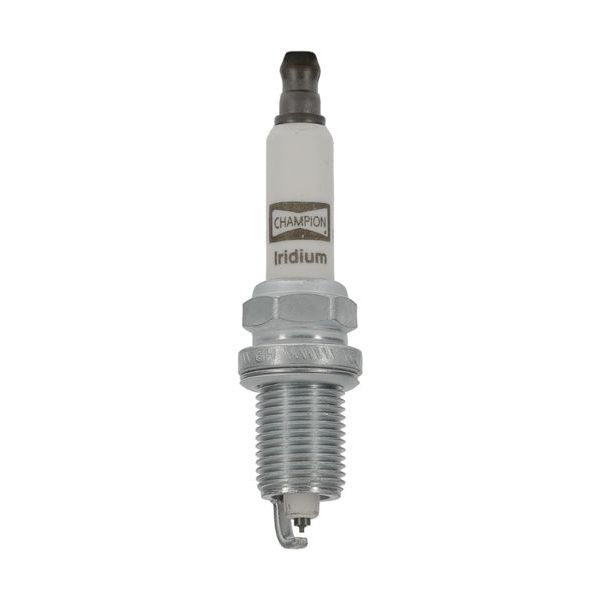

Champion Iridium Spark Plug – RC10WMPB3

Product Description:

Elevate your engine’s performance with the Champion® Iridium Spark Plug – RC10WMPB3, the epitome of excellence in ignition technology. Crafted with precision and innovation, this premium spark plug ensures unparalleled performance and reliability.

Key Features:

• Ultimate Element: Champion Iridium spark plug, featuring a fine-wire iridium centre and platinum ground electrodes, offers the ultimate in spark focus precision, maximizing engine performance under all conditions.

• Maximum Performance: Engineered for maximum performance, this spark plug guarantees superior ignition, delivering consistent power output and optimized engine efficiency.

• Longevity: The iridium centre electrode ensures maximum life, providing extended durability and reliability for prolonged engine operation without compromise.

• Enhanced Ignitability: Equipped with a fine-wire centre electrode and V-trimmed design, this spark plug enhances ignitability, ensuring smooth and efficient combustion even in challenging conditions.

• Sharper Spark Focus: The V-trimmed ground electrode promotes a sharper spark focus, resulting in improved combustion efficiency and enhanced engine power output.

• Stable Operating Temperature: Maintaining a stable operating temperature under all engine loads, this spark plug ensures reliable performance and prevents overheating, even during demanding driving conditions.

• Quick Optimal Temperature: Featuring the Heat-Active™ alloy, the electrodes reach their optimal temperature quickly, ensuring rapid and efficient ignition, regardless of external factors.

Spark Plug Dimensions:

• Plug Type: RC10WMPB3
• Centre Electrode Tip Material: Iridium
• Pre-Gap Size (IN): 0.030
• Pre-Gap Size (MM): 0.75
• Ground Electrode Quantity: 1
• Hex Size (IN): 0.625
• Hex Size (MM): 16.000
• Insulator Height (IN): 0.12
• Manufacturer Heat Range: 10
• Seat Type: Flat
• Reach (IN): 0.75
• Thread Diameter (IN): 0.551
• Thread Diameter (MM): 14.000
• Resistor Type: Yes
• Ground Electrode Tip Design: J Gap
• Ground Electrode Core Material: Platinum
• Washer Included: Yes
• Classification: Champion Iridium
• Electrical Terminal Type: Non-Removable Nut
• Hex Type: Hex
• Washer Type: Crush
• Indexed: No
• Part Description: Spark Plug
• Gap Style: J Gap
• Ground Electrode Material: Platinum Pad Surface
• Installed Height (Inch) (IN): 2
• Insulator Projection (Inch) (IN): 0.12

Cross Reference Numbers ONLY

If unsure of compatibility, please check fitments via catalogue HERE before purchase.

NGK – PZFR5F-11

Champion Motorcycle Spark plugs are now available through ORO2U. Use our online catalogue HERE to quickly browse vehicle cross references and access up-to-date fitment information. All our catalogues now have clickable links taking you directly to our product page.
