| Product Type | Chain Tools |
|---|---|
| Product Group | Workshop Tools & Equipment |
| Catalogue | TOOLS |
| Alternate SKU's | 08-0058 |

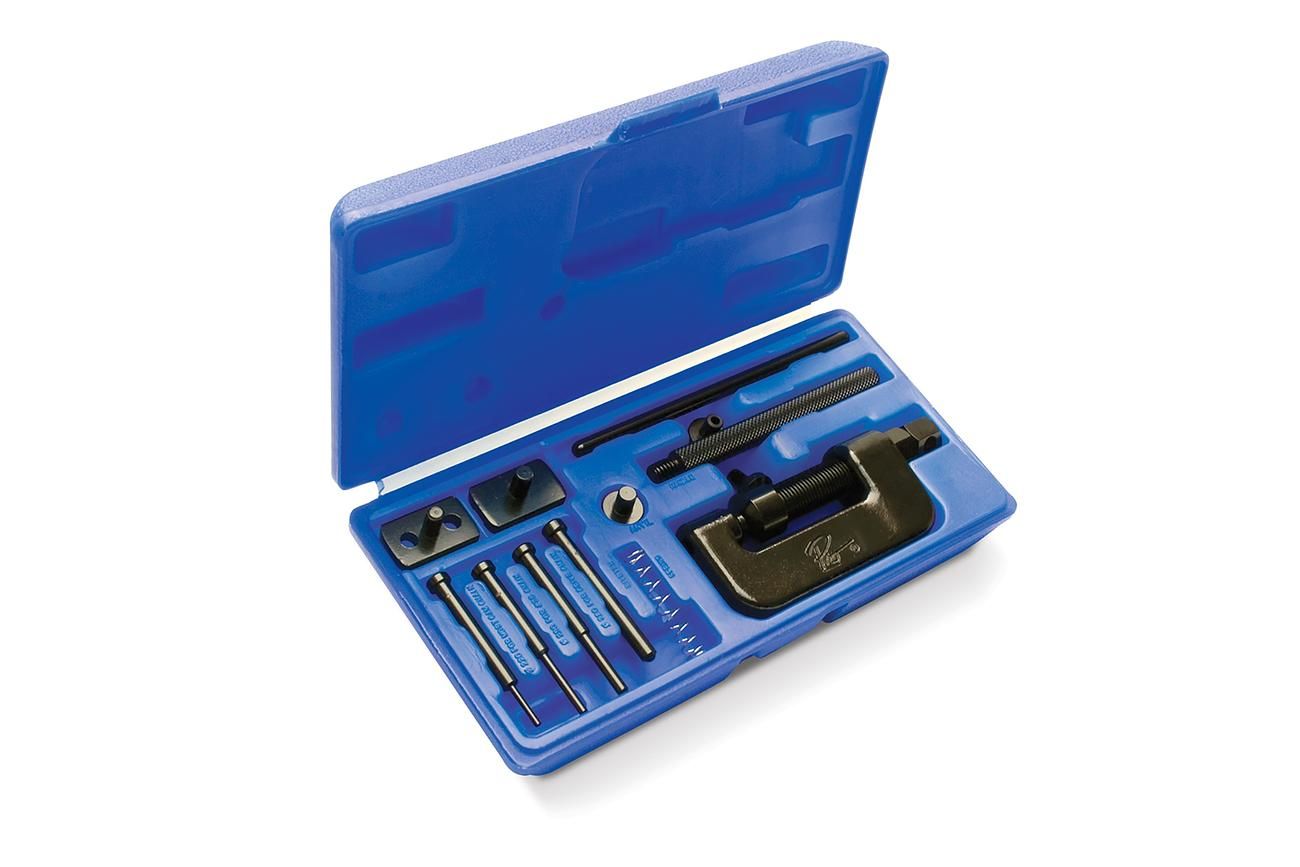

CHAIN RIVET CUTTING KIT MOTION PRO 08-0058
CHAIN RIVET / CUTTING TOOL
Motion Pro 08-0058
- Versatile enough to be used on drive chains and some cam chains.
- Will break chains from #35 to #630.
- For chain #520 and up, it is recommended to grind the rivet head.
- Can assemble 50 series press on master links.
- Can rivet hollow nose master links up to #630.

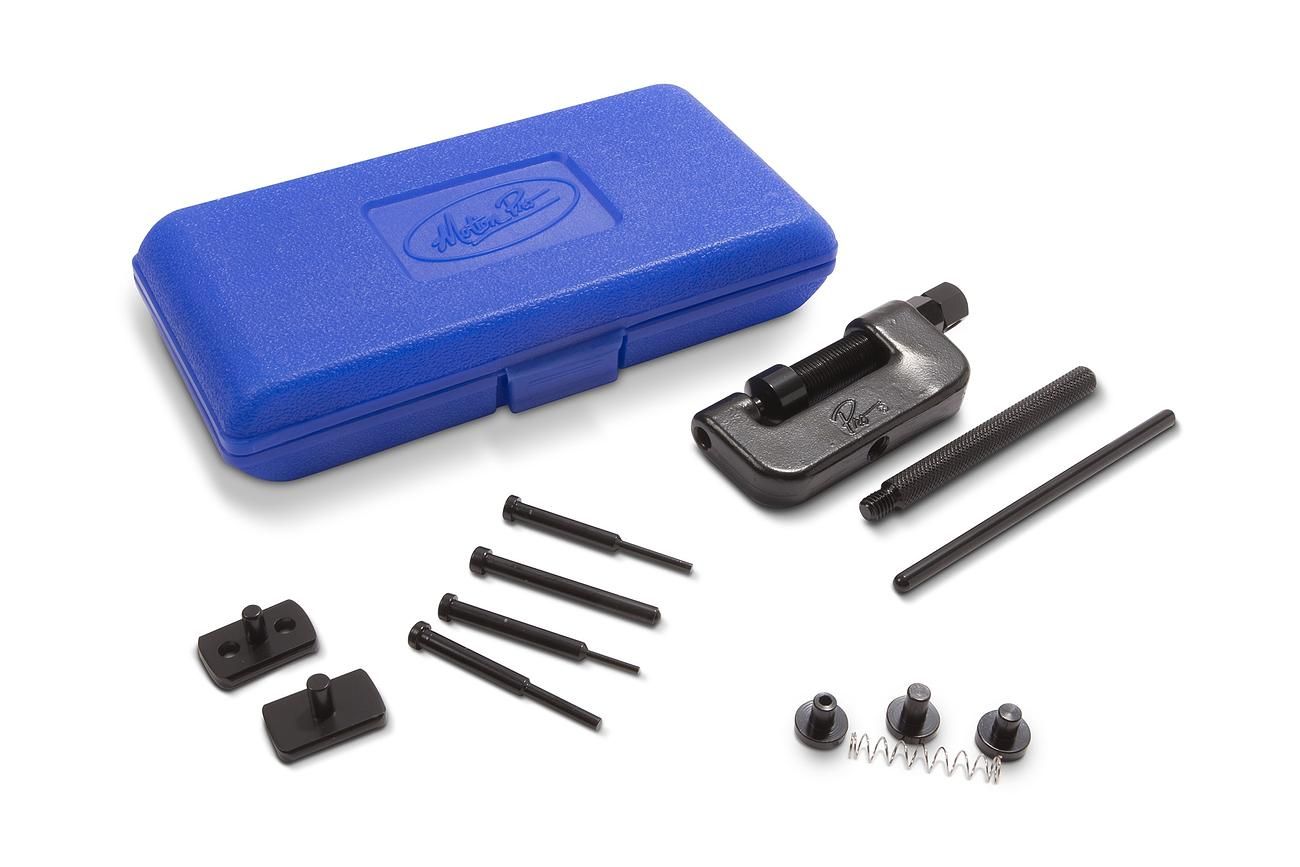

- Each kit includes 3 pin sizes to fit most chains (2mm, 3mm, 4mm).
- Investment-cast, hardened body and redesigned body bolt.
- Recommended for light to medium-duty use.
- For riveting hollow nose master links only.
- Kit includes press plates to rivet 50 series chain only.
- For riveting solid nose master links such as those found on EK and Regina chains, use 08-0135 Jumbo Chain tool in conjunction with 08-0142 Quad-Stake Rivet Kit or the 08-0470 PBR Chain Tool.
Replacement parts:
- PART# C08-058B (Alignment Bolt)
- PART# C08-058C (Extractor Bolt)
- PART# C08-058D (Large Anvil)
- PART# C08-001D (Spring)
- PART# 08-0059 (2 mm Pin)
- PART# 08-0060 (3 mm Pin)
- PART# 08-0061 (4 mm Pin)
- PART# 08-0062 (Rivet Tip)
- PART# 08-0067 (Press Plates)
