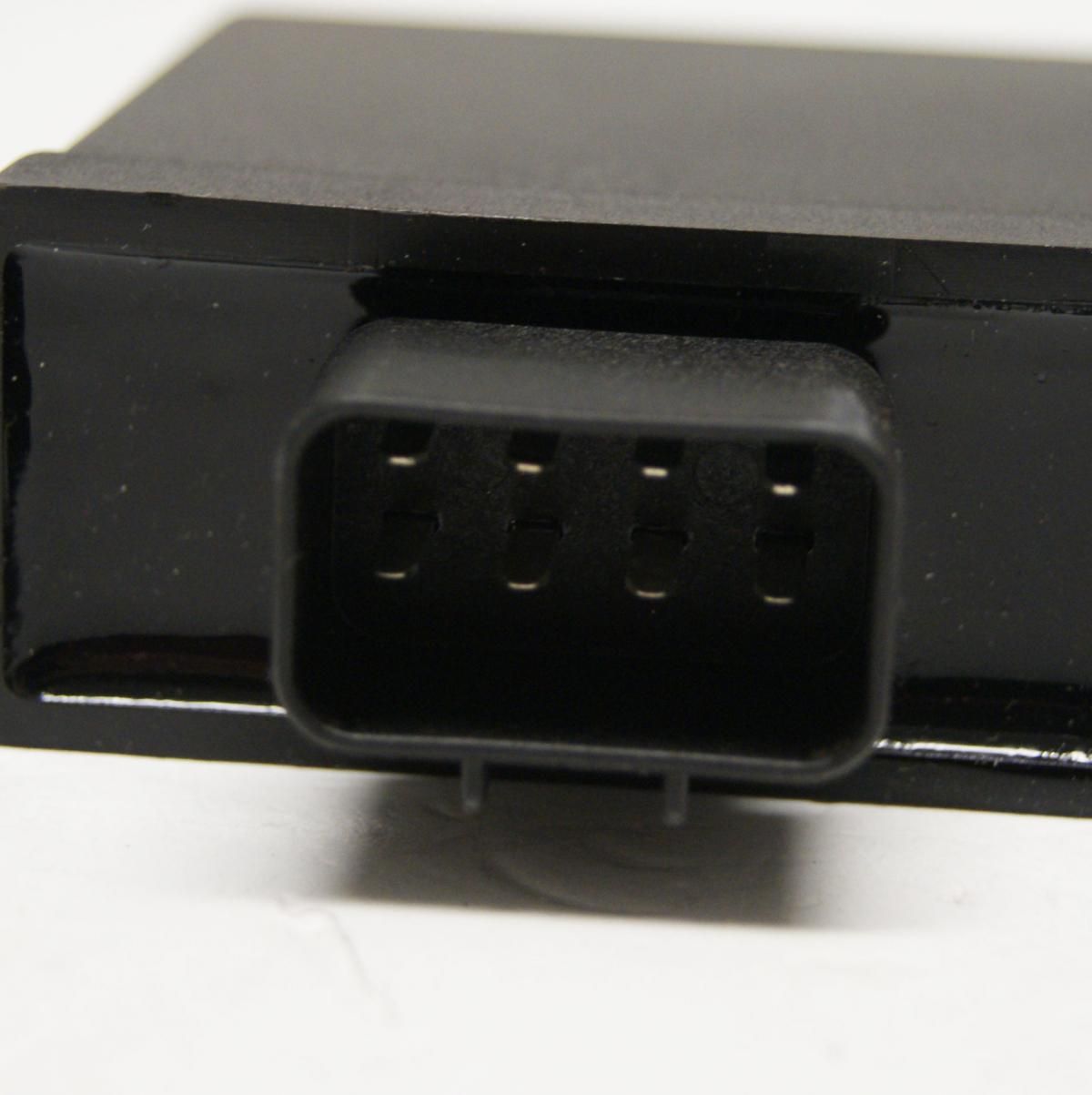

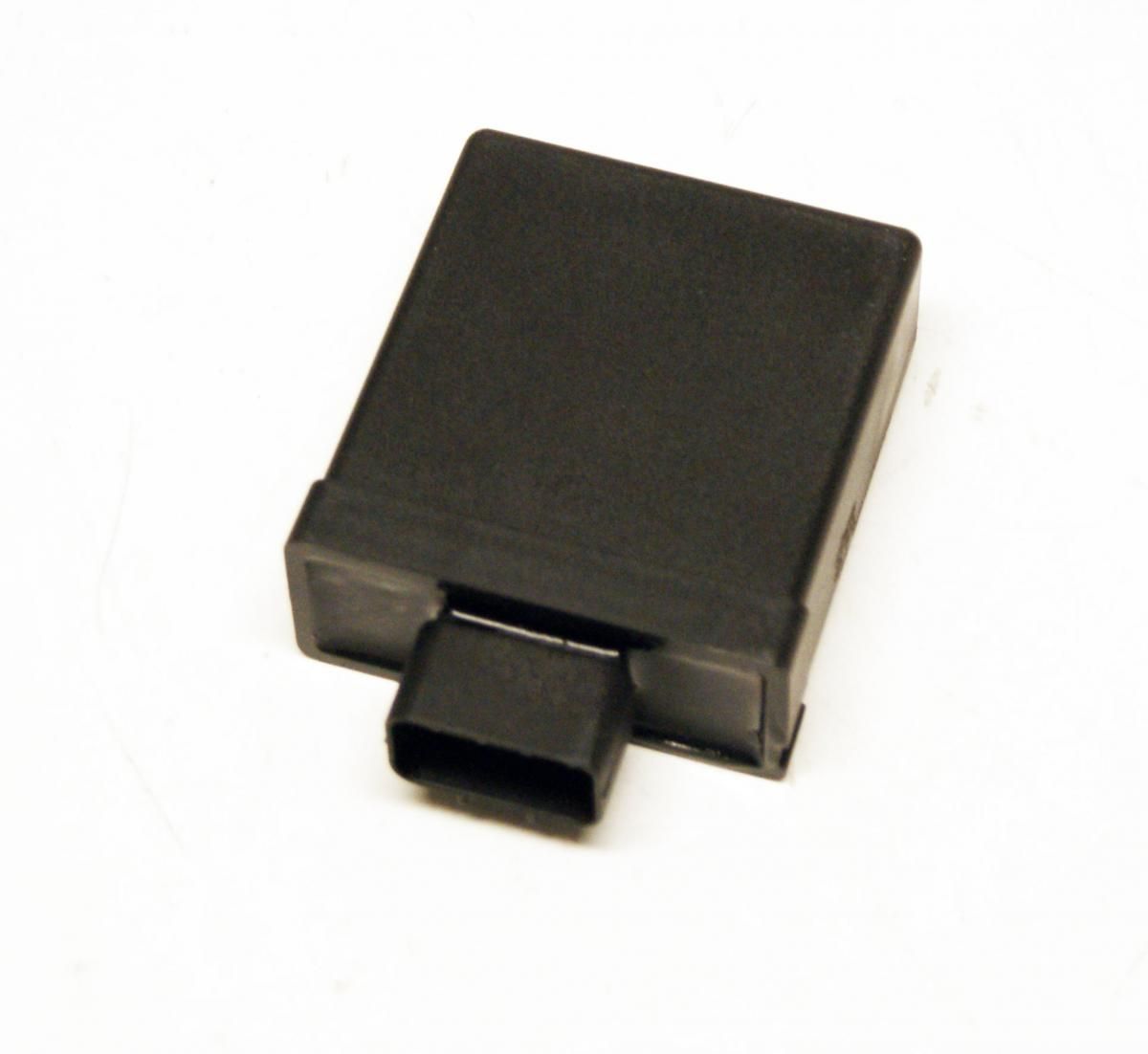

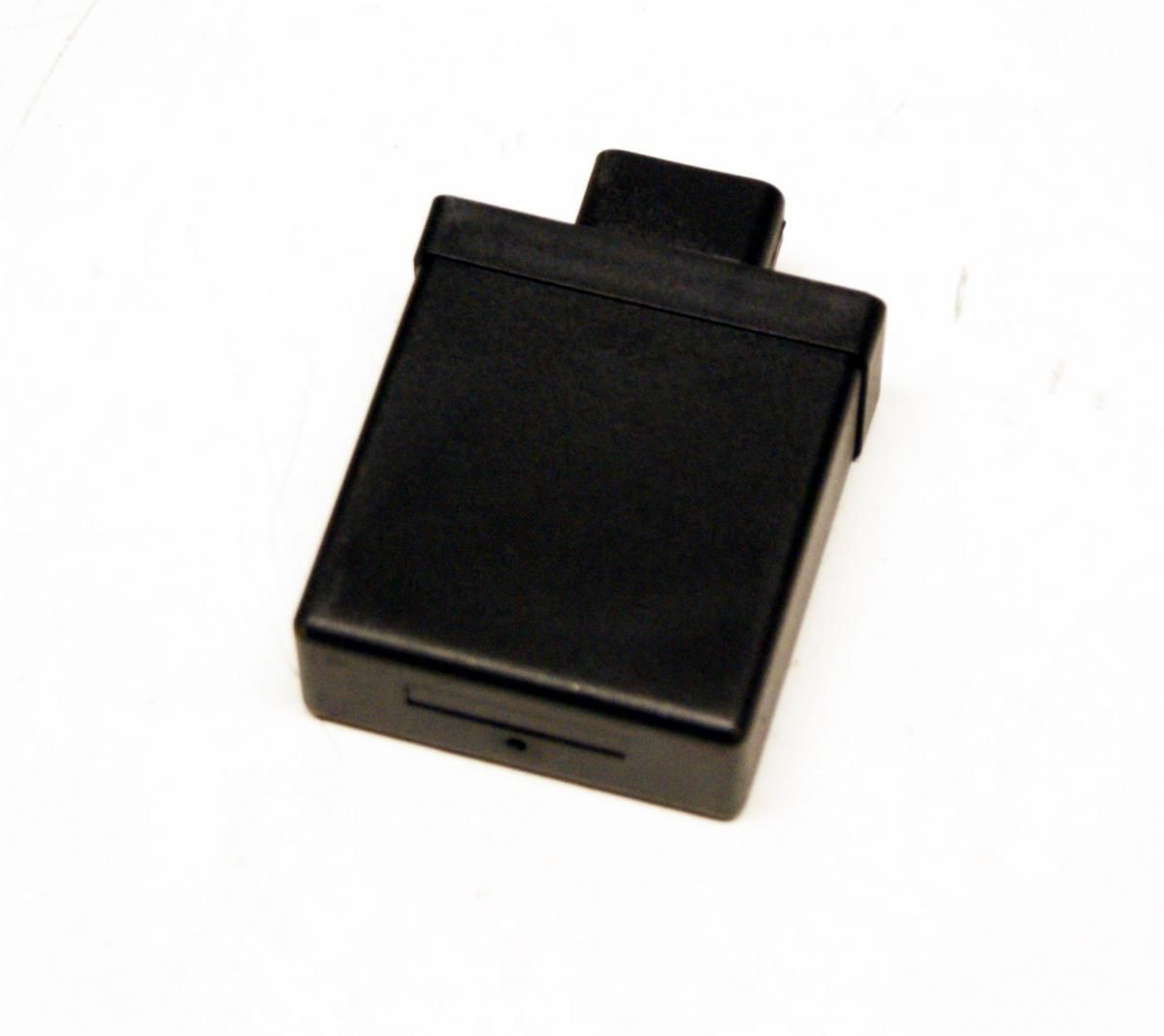

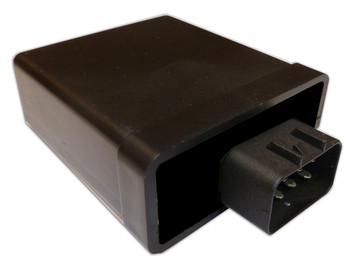

CDI BOX with electronic advance YFM300, 1SC-H5540-01-00 / 1SC-H5540-00-00, DZE 01612-04 EST 1612
Brand: DZE Electrics
Out of Stock
| Product Type | CDI Box |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | ATV |
CDI BOX with electronic advance YFM300, 1SC-H5540-01-00 / 1SC-H5540-00-00, DZE 01612-04 EST 1612
Yamaha
YFM Grizzly 300cc (2013)
YFM Grizzly 300cc (2012)
| Technical information | |
| Ignition timing | ADVANCE |
| Electronic system (type) | DIGITAL |
| Power supply (input) | BATTERY (DC) |
| # outputs (# output) | one |
| Height | 26 [mm] |
| Width | 65 [mm] |
| Length | 86 [mm] |

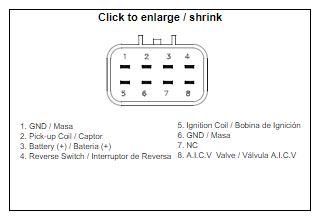

| # terminals (# terminals) | 8 |
| Enhanced | DO NOT |
| Dze Apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM code |
| Yamaha | YFM | Grizzly | 300 | 2013 | 1SC-H5540-01 |
| Yamaha | YFM | Grizzly | 300 | 2012 | 1SC-H5540-00 |
– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale
– Designed to handle increased power loads.
– DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Note. No Returns on Electrical Parts.
Cross reference numbers ONLY.
1SC-H5540-01-00 / 1SC-H5540-00-00, DZE EST 1612, IYA6050
