CARBURETTOR INTAKE FLANGE SUZUKI GN125 GS125 EN125 KEEWAY RKS 125 13110-05300 13101-05300

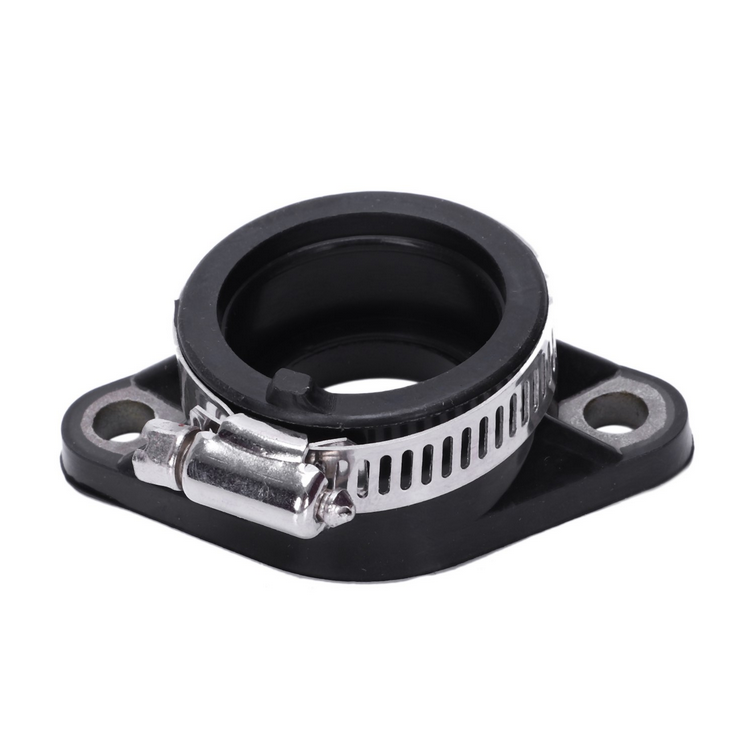

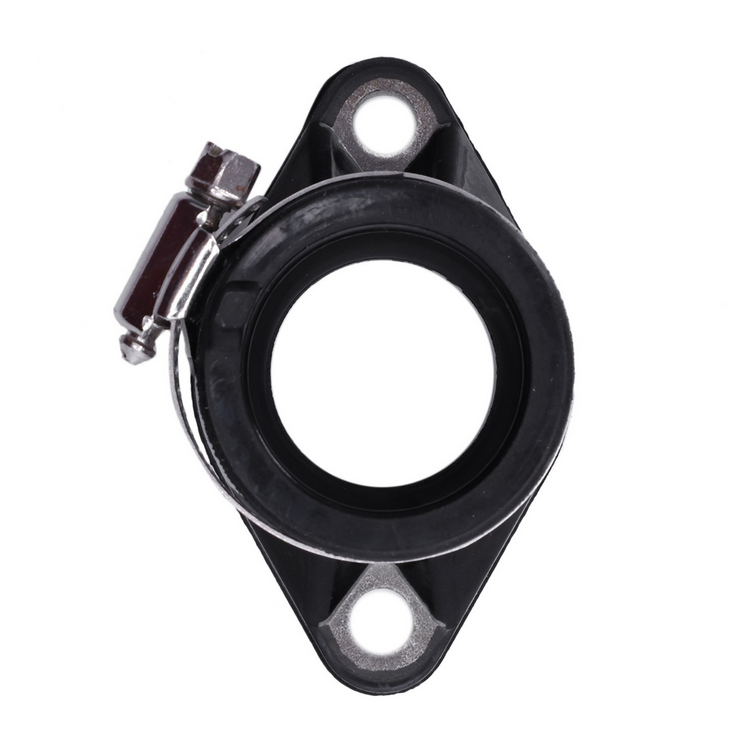

This carburettor intake manifold adaptor provides a secure connection between the carburettor and engine, ensuring proper air-fuel mixture flow. Designed to OEM specifications, it is a direct replacement part for various 125cc motorcycle models.

Features

• Unmatched reliability and performance from high-tech materials
• Manufactured to exacting standards for confident engine rebuilds
• Meets or exceeds OEM quality
• Direct OEM replacement
• Please see image before ordering to avoid mistakes
• Easy to install, but professional installation recommended if unsure

Specification (Aprox)

• Length – 76mm
• Width – 45mm
• Height – 23.5mm (Nipple height 26.5mm)
• Bottom ID – 28mm / Top ID – 34mm
• Top OD – 41mm
• Fixed O-Ring seal on the bottom

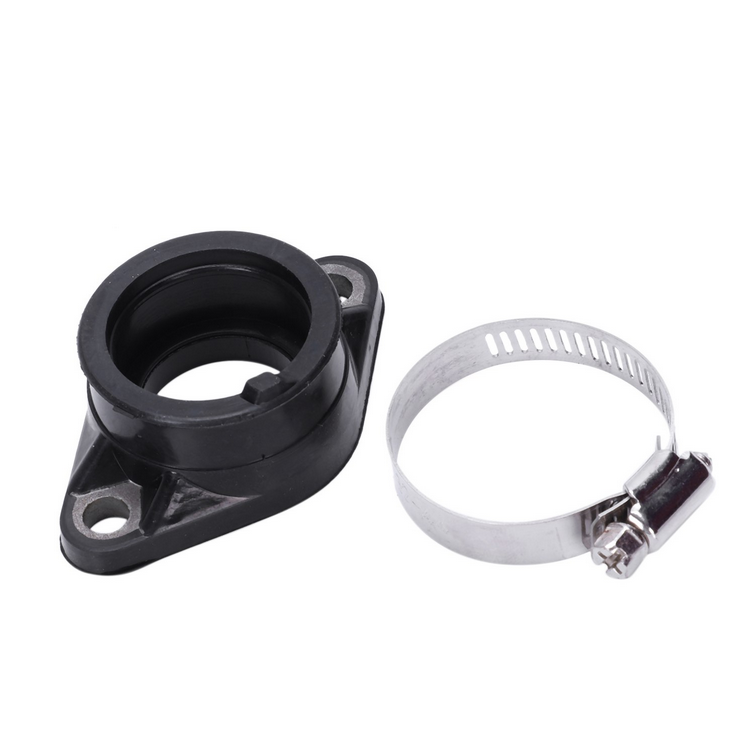

• 32-44 Jubilee Hose Clip Included

Cross-Reference OEM Part Numbers

• 13101-05300
• 13110-05300

Vehicle Fitments

• Suzuki GN125
• Suzuki GS125
• Suzuki EN125
• Keeway RKS 125
