CARBURETOR REBUILD KIT 90-91 SUZ DR350, ALLBALLS 26-1493 DIRT

CARBURETOR REBUILD KIT ALLBALLS 26-1493

– Kits include all of the necessary components to repair a carburetor.
– Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
– OEM jet sizes are included in the kit.
– NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today’s fuels.

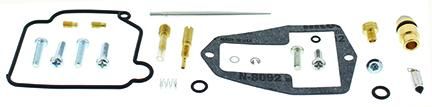

Included Items:

• (1) Jet needle
• (1) Pilot screw
• (1) Spring
• (1) Needle and seat
• (1) E-clip
• (1) Flat washer
• (3) O-rings(assorted sizes)
• (1) Float valve o-ring
• (1) Top cover gasket
• (1) 4mm-0.70 x 16mm Pan head bolt
• (3) 4mm-0.70 x 14mm Pan head bolts
• (2) 4mm-0.70 x 10mm Pan head bolts
• (1) Small screw
• (1) #132.5 Main jet
• (1) #37.5 Pilot jet
• (1) #0.9 Air jet
• (1) #1.0 Pilot air jet

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Suzuki

• DR350 90-91
