CARBURETOR REBUILD KIT 2004 YAM WR450F, ALLBALLS 26-1268 DIRT

CARBURETOR REBUILD KIT Allballs 26-1268

– Kits include all of the necessary components to repair a carburetor.

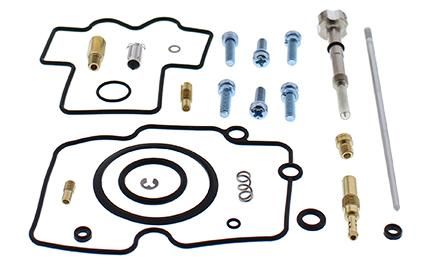

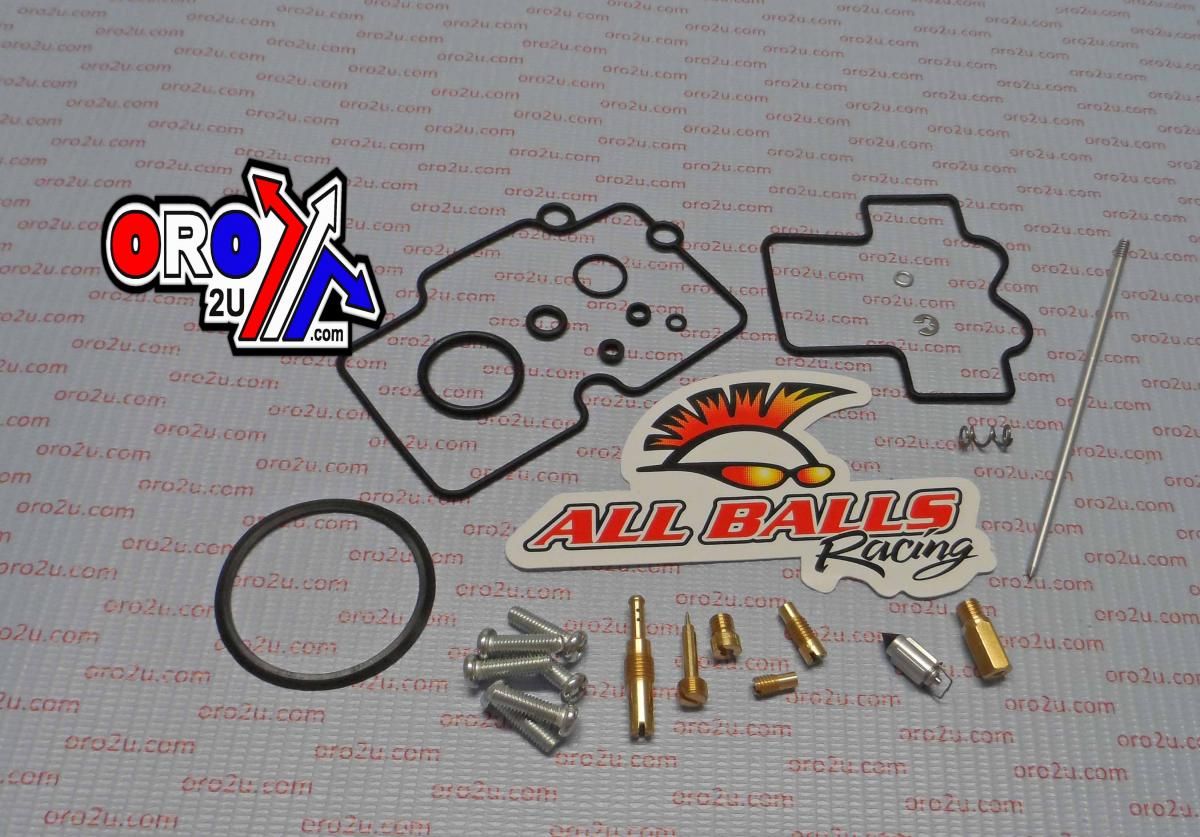

– Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
– OEM jet sizes are included in the kit.
– NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today’s fuels.

SPECIFICATION:

• (1) Float chamber gasket
• (1) Top cover gasket
• (1) Needle jet
• (1) “E” clip
• (1) Small flat washer
• (1) Spring
• (6) O-Rings
• (6) 8-32 x 1/2″ Pan head bolts
• (1) Valve float
• (1) Main jet #165
• (1) Jet #65
• (1) Slow jet #45
• (1) Jet #70
• (1) Jet #60
• (1)  Pilot air screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Yamaha

• WR450F 04
