CARBURETOR REBUILD KIT 05-06 SUZ RM125, ALLBALLS 26-1489 DIRT

CARBURETOR REBUILD KIT ALLBALLS 26-1489

– Kits include all of the necessary components to repair a carburetor.
– Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
– OEM jet sizes are included in the kit.
– NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today’s fuels.

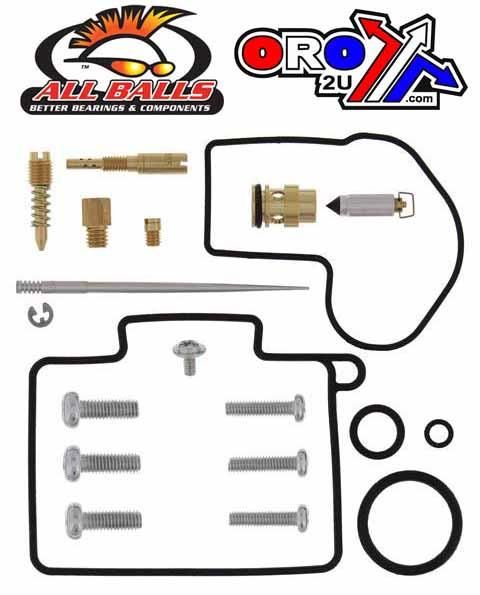

Included Items:

• (1) Float chamber gasket
• (1) Top cover gasket
• (1) Needle jet
• (1) “E” Clip
• (1) Spring
• (3) O-Ring
• (3) 8-32 x 5/8″ Pan head bolts
• (3) 5mm-.80 x 19mm Pan head bolts
• (1) Small flange pan head bolt
• (1) Needle valve assembly
• (1) Main jet #370
• (1) Pilot jet #32.5
• (1) Jet
• (1) Pilot air screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Suzuki

• RM125 05-06
