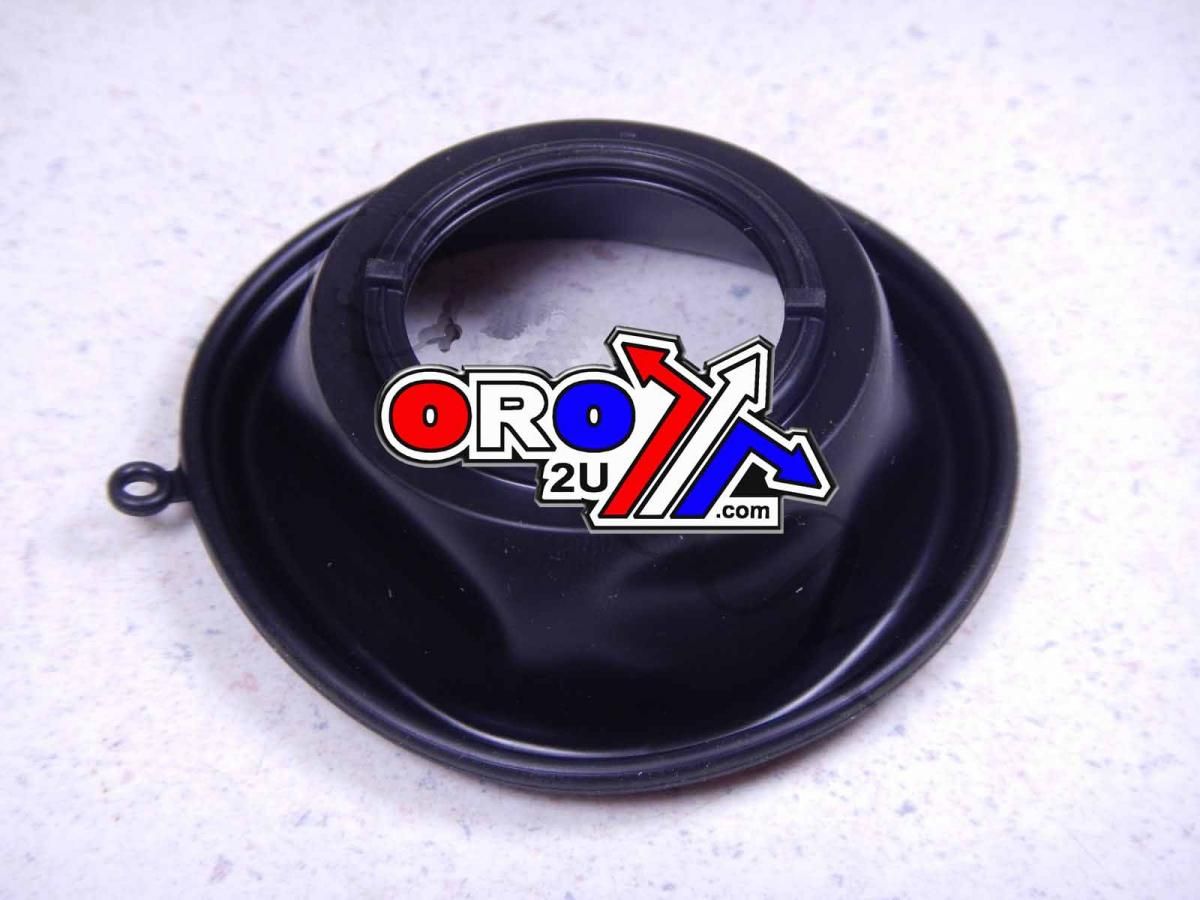

CARB SLIDE DIAPHRAGM YAM, K&L 18-8869, 5KM-24411-00, (top diaphragm rubber only, no slide body)

YAMAHA
YFM660F Grizzly-All   2002-2008,
YXR660 Rhino   2004-2007,

CARBURETOR SLIDE DIAPHRAGM K&L Supply 18-8869
(top diaphragm rubber only, no slide body)

– Made in Japan.
– Meets or exceeds OEM quality.
– Direct oem replacement.
– K&L Supply products are a high quality replacement part and carries our guarantee of your satisfaction.

Part No. 27-2864 (oro2u.com)

Cross reference numbers ONLY.
5KM-24411-00-00,

Assemblies where 5KM-24411-00-00 is used
2002 GRIZZLY 660 (YFM660FP) – Carburetor
2002 GRIZZLY 660 METALLIC SILVER (YFM660FPS) – Carburetor
2002 GRIZZLY HUNTER EDITION (YFM660FHP) – Carburetor
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER (YFM660FHRH) – Carburetor
2003 GRIZZLY 660 (YFM660FR) – Carburetor
2003 GRIZZLY 660 4X4 METALLIC TITANIUM (YFM660FRGY) – Carburetor
2003 GRIZZLY 660 WETLANDS HUNTER EDITION (YFM660FHR) – Carburetor
2004 GRIZZLY 660 (YFM660FS) – Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FHSW) – Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FLES) – Carburetor
2004 GRIZZLY 660 HARDWOODS HUNTER CAMO (YFM660FHS) – Carburetor
2004 RHINO 660 (YXR660FAS) – Carburetor
2004 RHINO HARDWOODS CAMO (YXR660FAHS) – Carburetor
2005 GRIZZLY 660 (YFM66FAT) – Carburetor
2005 GRIZZLY 660 HUNTER (YFM66FAHT) – Carburetor
2005 GRIZZLY 660 HUNTER WETLAND (YFM66FAHWT) – Carburetor
2005 GRIZZLY 660 SE (YFM66FASET) – Carburetor
2005 RHINO (YXR660FAT) – Carburetor
2005 RHINO HUNTER (YXR660FAHT) – Carburetor
2006 GRIZZLY 660 DUCKS UNLIMITED EDITION (YFM66FAHDV) – Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGG) – Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGH) – Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FAV) – Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS HD CAMO (YFM66FAHV) – Carburetor
2006 GRIZZLY 660 SPECIAL EDITION (YFM66FASEV) – Carburetor
2006 RHINO 660 4WD (YXR66FAVGR) – Carburetor
2006 RHINO 660 4WD EXPLORING EDITION – Hunter Green (YXR66FAEXG) – Carburetor
2006 RHINO 660 4WD EXPLORING EDITION Hardwoods HD Camo (YXR66FAEXH) – Carburetor
2006 RHINO 660 4WD HUNTER (YXR66FAHV) – Carburetor
2006 RHINO 660 4WD SPECIAL EDITION (YXR66FASEV) – Carburetor
2007 GRIZZLY 660 (YFM66FGW) – Carburetor
2007 GRIZZLY HUNTER (YFM66FGHW) – Carburetor
2007 RHINO 660 (YXR66FW) – Carburetor
2007 RHINO 660 4WD EXPLORING EDITION – HUNTER GREEN (YXR66FEXW) – Carburetor
2007 RHINO 660 4WD SPECIAL EDITION (YXR66FSEW) – Carburetor
2007 RHINO 660 4WD SPORT EDITION (YXR66FSPW) – Carburetor
2007 RHINO 660 DUCKS UNLIMITED EDITION (YXR66FDUW) – Carburetor
2007 RHINO 660 HUNTER – HARDWOODS HD CAMO (YXR66FHW) – Carburetor
2008 GRIZZLY 660 (YFM66FGXGR) – Carburetor
2008 GRIZZLY 660 (YFM66FGXL) – Carburetor
2008 GRIZZLY 660 (YFM66FGXR) – Carburetor
2008 GRIZZLY 660 HUNTER (YFM66FGHX) – Carburetor

2002 GRIZZLY 600 METALLIC SILVER – YFM660FPS CARBURETOR
2002 GRIZZLY HUNTER EDITION – YFM660FHP CARBURETOR
2002 YFM660FP CARBURETOR

2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER – YFM660FR-H CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION – YFM660FHR-HD CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION – YFM660FHRH CARBURETOR

2003 GRIZZLY 660 – YFM660FR CARBURETOR
2003 GRIZZLY 660 4X4 METALLIC TITANIUM – YFM660FRGY CARBURETOR
2003 GRIZZLY 660 4X4 WETLANDS HUNTER EDITION – YFM660FHR CARBURETOR
