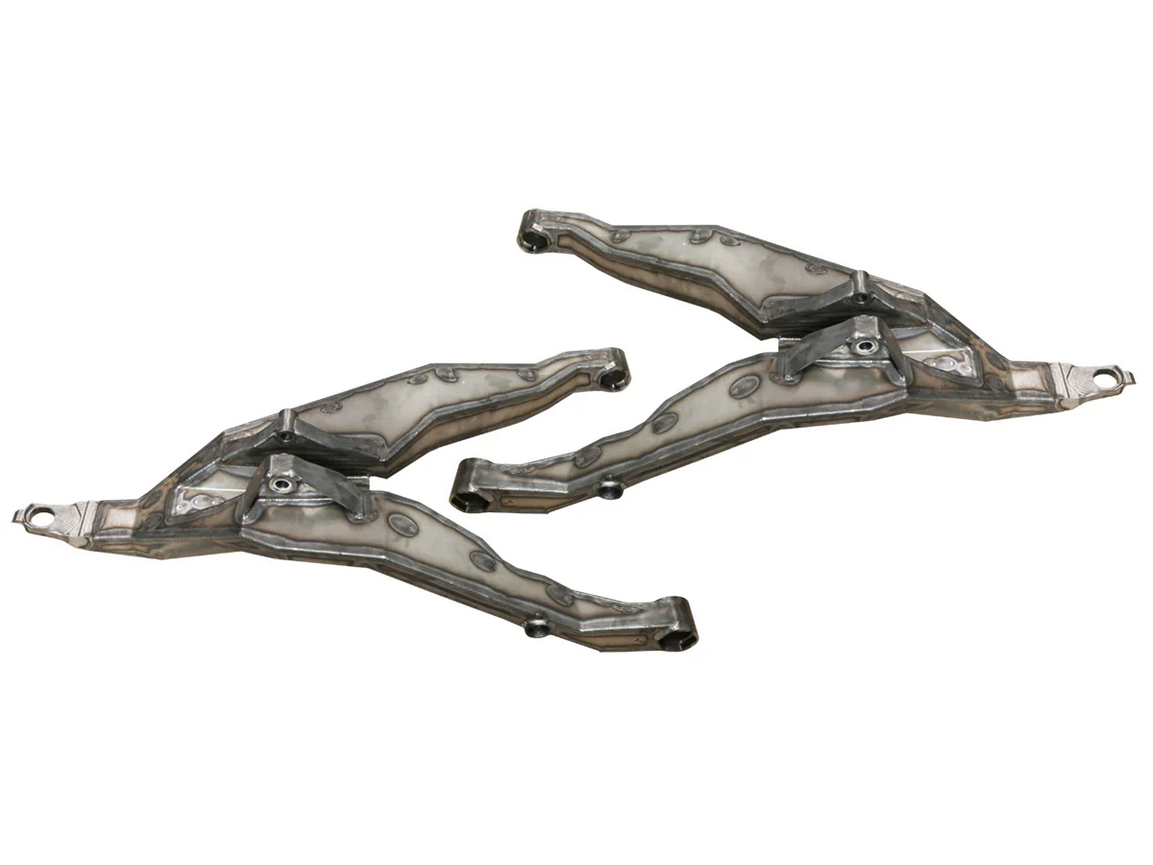

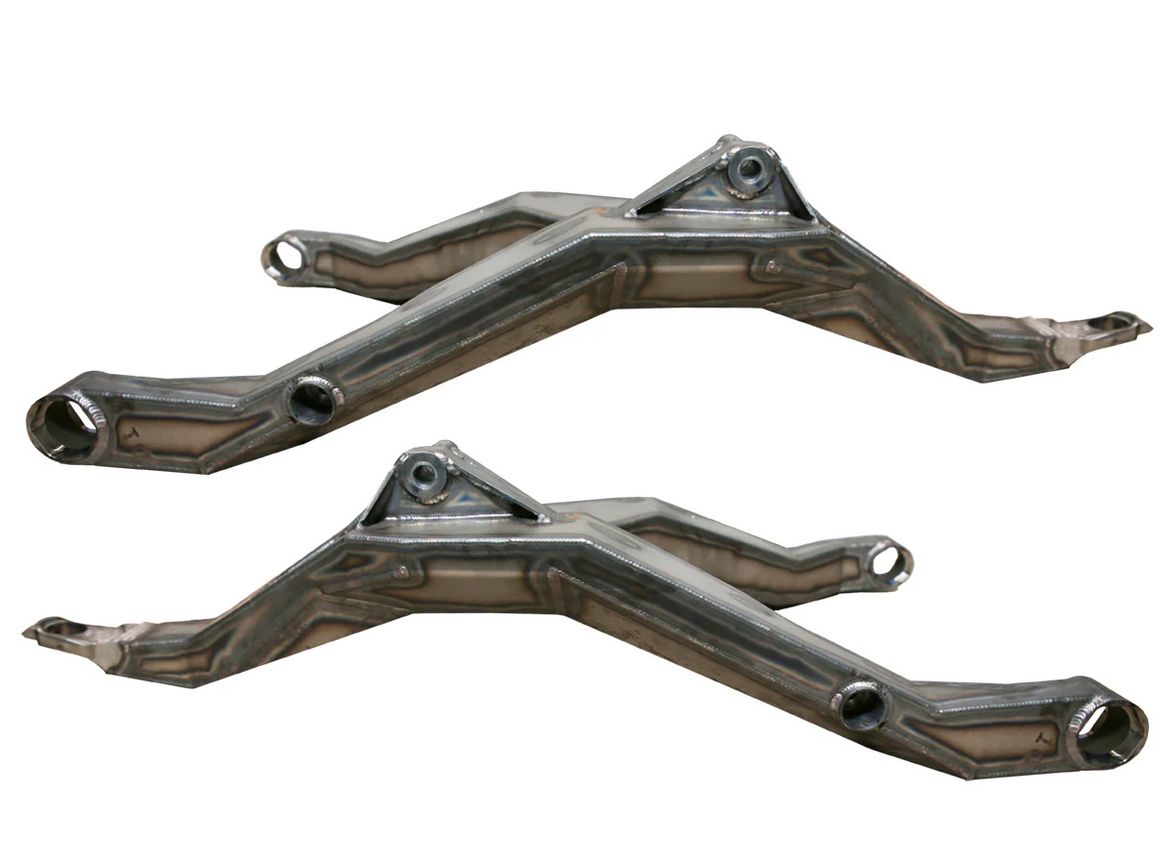

CANAM MAVERICK R HCR BOXED LOWER HIGH CLEARANCE A-ARMS, MAV-06300-3 RAW

HCR Suspension’s Can-Am Maverick R Heavy Duty Dual-Sport High Clearance Lower Front A-arm kit is engineered as a factory-width replacement that offers enhanced obstacle clearance and improved durability. Featuring a 3″+ high clearance design, this kit allows the Maverick R to navigate rough terrain more efficiently. Built using HCR’s proprietary Elite alloy—30% stronger than 4130 Series Chromoly—the arms are designed with integrated skid plates and Wedge Technology for added performance and protection.

THESE ARE RAW/BARE METAL AND REQUIRE PAINTING OR POWDER COATING. MAY BE SURFACE RUST ON THE ARMS DUE TO SHELF LIFE

Features

• 3″+ high clearance lower A-arm design for increased obstacle clearance

• Factory-width replacement compatible with OEM setup

• Built-in Wedge Technology for improved terrain handling

• Integrated skid plates to prevent rock interference

• Constructed from HCR’s proprietary Elite alloy for enhanced strength and wear resistance

• American-made design for improved functionality over OEM components

• Kit includes 2 front lower A-arms and all necessary installation hardware

• Requires reuse of OEM ball joints or new OEM pivot equipment

Specifications

• Part Number: MAV-06300-3

• Material: HCR Elite alloy (30% stronger than 4130 Series Chromoly)

• Application: Dual-Sport, High Clearance

• Installation Hardware: Included

• Ball Joints: Not included (reuse OEM or install new OEM)

• Clearance: +3″ over OEM

• Configuration: Factory-width replacement

• Skid Plates: Integrated

• Design: Boxed lower A-arms

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• Can-Am Maverick R (2-seater only)
