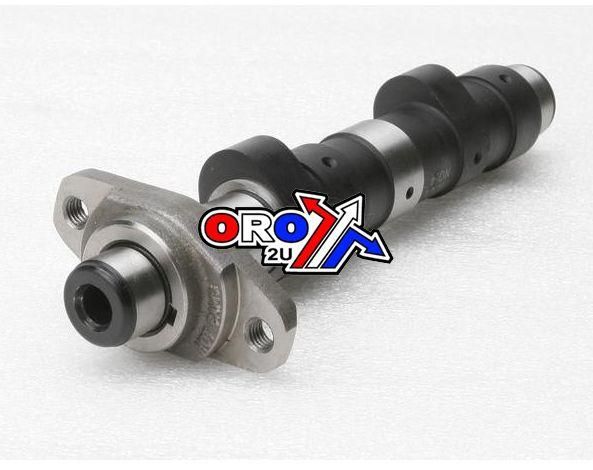

CAMSHAFT XR600 89-00 HONDA, HOT CAMS 1004-1

CAMSHAFT HOTCAM STAGE 1 CAM1004-1

HONDA 1988 – 2000 XR600R,
HONDA 1993 – 2000 XR600L,

Extract maximum performance from your engine

Hot Cams provide increased intake and exhaust duration for improved breathability and more horsepower Provides significantly more mid-range punch and top-end speed for most models Core trade-in not required so you can keep the original camshaft Compatible with most models’ stock valve springs and rockers Vastly improved mid-range and top-end power; compatible with stock valve springs and rockers

INTAKE LIFT: 8.8mm INTAKE DURATION(@1mm): 258 degrees EXHAUST LIFT: 8.8mm EXHAUST DURATION(@1mm): 258 degrees

Part No. 56-C200 (oro2u.com)



Technical Specifications:

Exhaust Duration (Degrees at 1mm):

258.00

Exhaust Lift (mm):

8.80

Exhaust Lobe Center (Degrees):

.00

Exhaust Valve Lash (mm):

.20

Intake Duration (Degrees at 1mm):

258.00

Intake Lift (mm):

8.80

Intake Lobe Center (Degrees):

.00

Intake Valve Lash (mm):

.15

Shim Kit:
