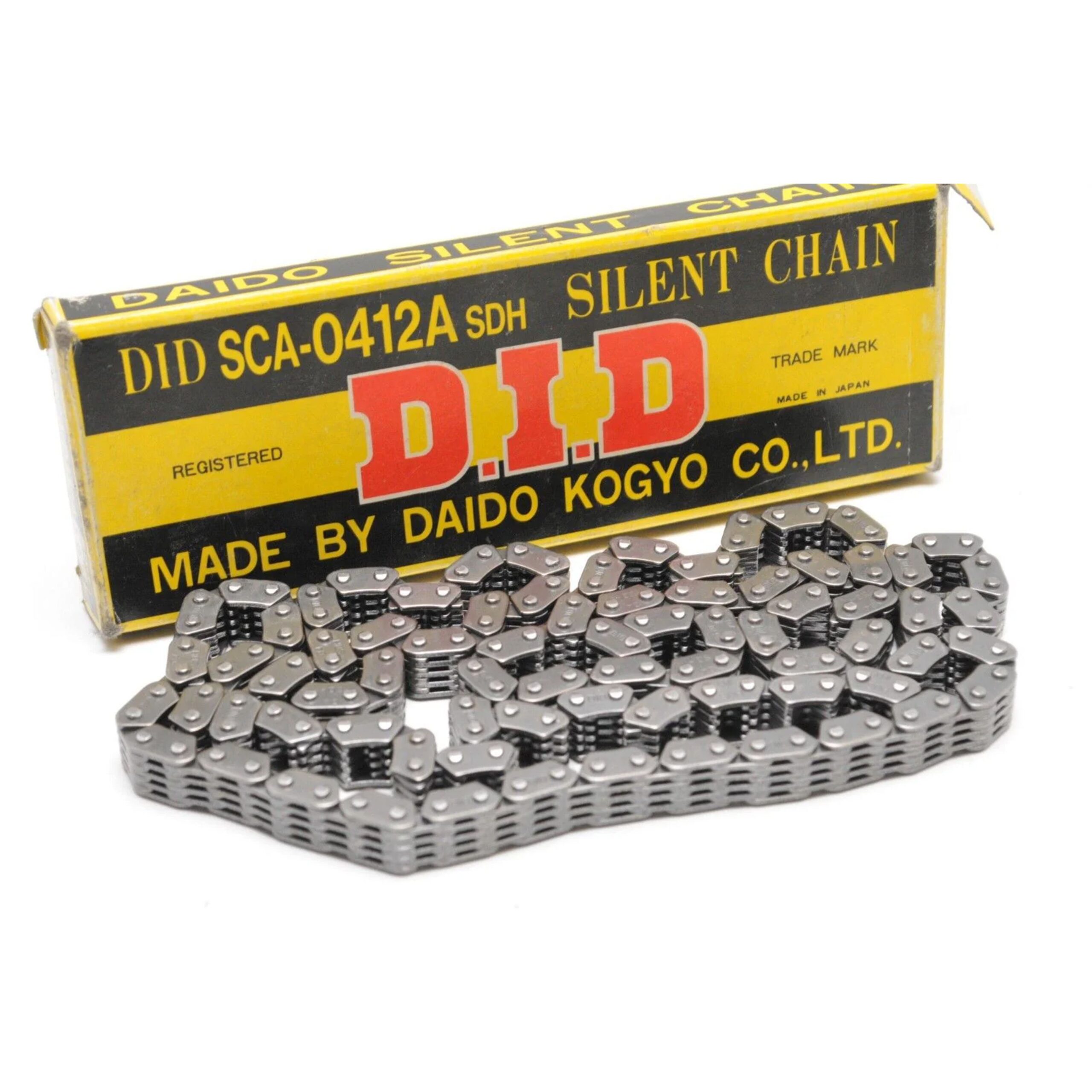

CAM CHAIN SCA-0412A 136L DID, 3114023, 30-423.DID

CAM TIMING CHAIN DID SCA-0412A SDH 136 LINKS

SUZUKI
GSX1300R Hayabusa (1300) (1999-2009),
YAMAHA
XT350 XT 350 1985-1994,
XT250L/LC Dual Sport   1984,
XT350N/NC~M/MC Dual Sport   85-00
TT350S/T Offroad   86-87
SRX250T/TC   1987,
HONDA
CBX400 C 1985,
VT1100C Shadow 1100   1985-2007,

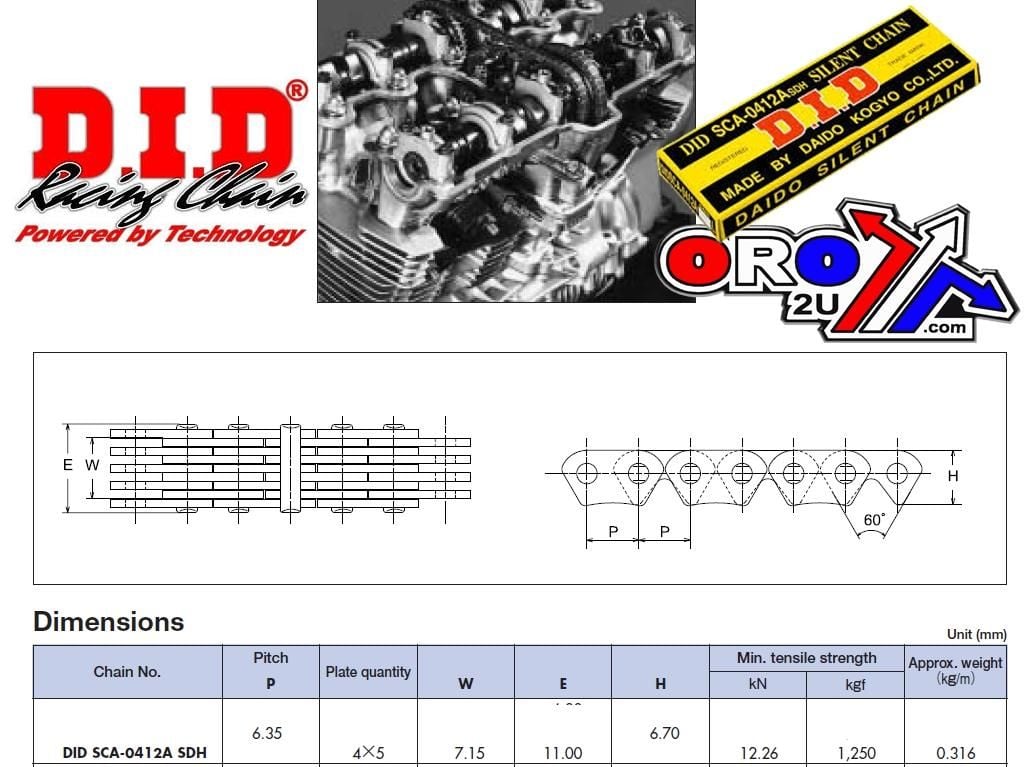

SC silent chains (SCA, SCR, SC) SC silent chains use specially-coated round pins and special plates to achieve an ideal engagement mechanism, and can keep a noise level remarkably lower than conventional roller chains. SC type silent chains can be used for high speed and large tension transmission just like a toothed metallic belt since the plates directly engage with the sprockets for driving. SCR-04 silent chains are designed with inner engaging structure for further reduced noise level.

Part No. 30-410.136.DID (oro2u.com)

Cross reference numbers ONLY.
3114023, 30-423.DID, 82RH2015-136M, K&L 12-0369   ,   94590-91136-00, 79Rh2015-136M, 14401-MG8-003, 12760-24F00, 12760-24F01, PROX 31.3999,

Assemblies where 94590-91136-00 is used
1984 XT250L – Camshaft – Chain
1984 XT250LC – Camshaft – Chain
1985 XT350N – Camshaft – Chain
1985 XT350NC – Camshaft – Chain
1986 TT350S – Camshaft – Chain
1986 XT350S – Camshaft – Chain
1986 XT350SC – Camshaft – Chain
1987 SRX250T – Camshaft Chain
1987 SRX250TC – Camshaft Chain
1987 TT350T – Camshaft-Chain
1987 XT350T – Camshaft – Chain
1987 XT350TC – Camshaft – Chain
1988 XT350U – Camshaft – Chain
1988 XT350UC – Camshaft – Chain
1989 XT350W – Camshaft – Chain
1989 XT350WC – Camshaft – Chain
1990 XT350A – Camshaft – Chain
1990 XT350AC – Camshaft – Chain
1991 XT350B – Camshaft – Chain
1991 XT350BC – Camshaft – Chain
1992 XT350D – Camshaft – Chain
1992 XT350DC – Camshaft – Chain
1993 XT350E – Camshaft-Chain
1993 XT350EC – Camshaft-Chain
1994 XT350F – Camshaft – Chain
1994 XT350FC – Camshaft – Chain
1995 XT350G – Camshaft
1995 XT350GC – Camshaft
1996 XT350H – Camshaft – Chain
1996 XT350HC – Camshaft – Chain
1997 XT350J – Camshaft Chain
1997 XT350JC – Camshaft Chain
1998 XT350K – Camshaft Chain
1998 XT350KC – Camshaft Chain
1999 XT350L – Camshaft Chain
1999 XT350LC – Camshaft Chain
2000 XT350 (XT350M) – Camshaft Chain
2000 XT350 (XT350MC) – Camshaft Chain

Assemblies where 14401-MG8-003 is used
1985 VT1100C A – CAM CHAIN / TENSIONER
1985 VT1100C AC – CAM CHAIN / TENSIONER
1986 VT1100C A – CAM CHAIN / TENSIONER
1986 VT1100C AC – CAM CHAIN / TENSIONER
1987 VT1100C A – CAM CHAIN
1987 VT1100C AC – CAM CHAIN
1988 VT1100C A – CAM CHAIN
1988 VT1100C AC – CAM CHAIN
1989 VT1100C A – CAM CHAIN
1989 VT1100C AC – CAM CHAIN
1990 VT1100C A – CAM CHAIN
1990 VT1100C AC – CAM CHAIN
1992 VT1100C AC – CAM CHAIN
1993 VT1100C AC – CAM CHAIN
1994 VT1100C A – CAM CHAIN
1994 VT1100C AC – CAM CHAIN
1995 VT1100C A – CAM CHAIN
1995 VT1100C AC – CAM CHAIN
1995 VT1100C2 A – CAM CHAIN
1995 VT1100C2 AC – CAM CHAIN
1996 VT1100C A – CAM CHAIN
1996 VT1100C AC – CAM CHAIN
1996 VT1100C2 A – CAM CHAIN
1996 VT1100C2 AC – CAM CHAIN
1997 VT1100C A – CAM CHAIN
1997 VT1100C AC – CAM CHAIN
1997 VT1100C2 A – CAM CHAIN
1997 VT1100C2 AC – CAM CHAIN
1997 VT1100C2-2 A – CAM CHAIN
1997 VT1100C2-2 AC – CAM CHAIN
1998 VT1100C A – CAM CHAIN
1998 VT1100C AC – CAM CHAIN
1998 VT1100C2 A – CAM CHAIN
1998 VT1100C2 AC – CAM CHAIN
1998 VT1100C2-2 2A – CAM CHAIN
1998 VT1100C2-2 2AC – CAM CHAIN
1998 VT1100C3 A – CAM CHAIN
1998 VT1100C3 AC – CAM CHAIN
1998 VT1100T A – CAM CHAIN / TENSIONER
1998 VT1100T AC – CAM CHAIN / TENSIONER
1999 VT1100C A – CAM CHAIN
1999 VT1100C AC – CAM CHAIN
1999 VT1100C2 A – CAM CHAIN
1999 VT1100C2 AC – CAM CHAIN
1999 VT1100C3 A – CAM CHAIN
1999 VT1100C3 AC – CAM CHAIN
1999 VT1100D2 A – CAM CHAIN
1999 VT1100D2 AC – CAM CHAIN
1999 VT1100T A – CAM CHAIN / TENSIONER
1999 VT1100T AC – CAM CHAIN / TENSIONER
2000 VT1100C A – CAM CHAIN
2000 VT1100C AC – CAM CHAIN
2000 VT1100C2 A – CAM CHAIN
2000 VT1100C2 AC – CAM CHAIN
2000 VT1100C3 A – CAM CHAIN
2000 VT1100C3 AC – CAM CHAIN
2000 VT1100T A – CAM CHAIN / TENSIONER
2000 VT1100T AC – CAM CHAIN / TENSIONER
2001 VT1100C A – CAM CHAIN
2001 VT1100C AC – CAM CHAIN
2001 VT1100C2 A – CAM CHAIN
2001 VT1100C2 AC – CAM CHAIN
2001 VT1100C3 A – CAM CHAIN
2001 VT1100C3 AC – CAM CHAIN
2001 VT1100T A – CAM CHAIN / TENSIONER
2001 VT1100T AC – CAM CHAIN / TENSIONER
2002 VT1100C A – CAM CHAIN
2002 VT1100C AC – CAM CHAIN
2002 VT1100C2 A – CAM CHAIN
2002 VT1100C2 AC – CAM CHAIN
2002 VT1100C3 A – CAM CHAIN
2002 VT1100C3 AC – CAM CHAIN
2003 VT1100C A – CAM CHAIN
2003 VT1100C AC – CAM CHAIN
2003 VT1100C2 A – CAM CHAIN
2003 VT1100C2 AC – CAM CHAIN
2004 VT1100C A – CAM CHAIN
2004 VT1100C AC – CAM CHAIN
2004 VT1100C2 A – CAM CHAIN
2004 VT1100C2 AC – CAM CHAIN
2005 VT1100C A – CAM CHAIN
2005 VT1100C AC – CAM CHAIN
2005 VT1100C2 A – CAM CHAIN
2005 VT1100C2 AC – CAM CHAIN
2006 VT1100C A – CAM CHAIN
2006 VT1100C AC – CAM CHAIN
2006 VT1100C2 A – CAM CHAIN
2006 VT1100C2 AC – CAM CHAIN
2007 VT1100C A – CAM CHAIN
2007 VT1100C AC – CAM CHAIN
2007 VT1100C2 A – CAM CHAIN
2007 VT1100C2 AC – CAM CHAIN
