| Product Type | Throttle Cable |
|---|---|
| Product Group | Cables & Hoses |
| Catalogue | ATV |

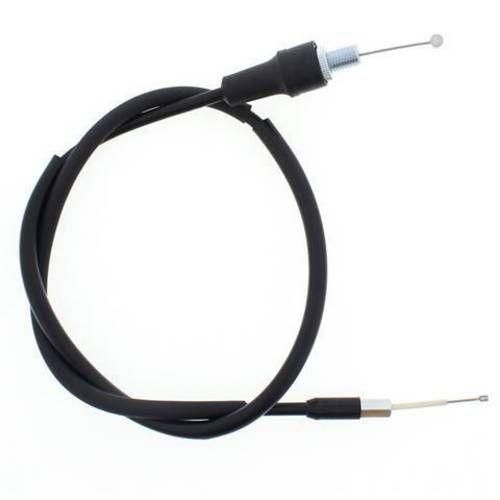

CABLE THROTTLE. 07-16 YFM700, ALLBALLS 45-1075 3B4-26311-20
Product: Cable, Black Vinyl, Throttle ALLBALLS 45-1075, Made in Japan
Features:
- Throttle cable assembly
- Black PVC outer jacket for maximum flexibility and durability
- Steel inner casing is tightly coiled for low compression ratios
- Pre-lubricated nylon inner sleeve guarantees smooth operation and long life
- All wire ends are bird-caged to terminal casting for superior pull-out resistance
- EPDM molded rubber components for high UV resistance and long life
- Injected-molded components are manufactured from high-strength POM material
Included Items:
- (1) Black throttle cable
Housing Length: 31 5/8 in.
Travel: 3 1/2 in.
Specifications:
- Housing: 6.0mm
- Inner wire: 1.5mm
- Nipple: 6x6mm / 4x3mm
- Overall: 904mm
- Free length: 88mm
- Housing length: 806mm
Cross Reference Numbers:
- 3B4-26311-20-00
- MOTION PRO 05-0352
- BRONCO 105-352
Compatibility:
Yamaha:
- Kodiak 700 4WD (2016)
- YFM550 Grizzly (2009-2013)
- YFM550 Grizzly EPS (2009-2013)
- YFM700 Grizzly (2007-2016)
- YFM700 Grizzly EPS (2008-2016)
