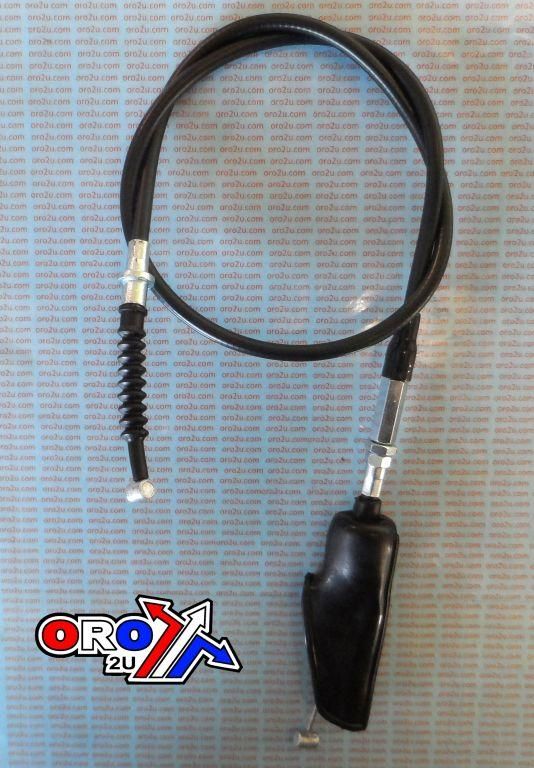

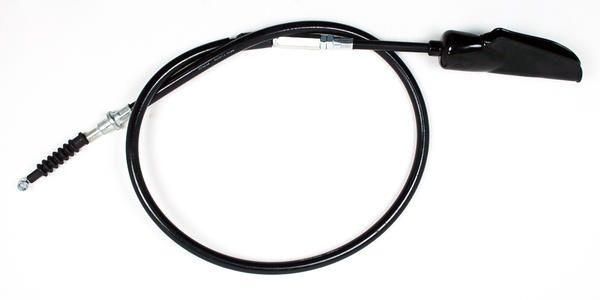

CABLE CLUTCH 97-17 YZ80 YZ85, PSYCHIC 105-224 4ES-26335-11-0

YAMAHA

• YZ85 (2002-2017)
• YZ80 (82cc) (1997-2001)
• YZ80 (79cc) (1997-2001)

Part: CABLE CLUTCH PSYCHIC 105-224
Features:

• Clutch cable assembly
• Black PVC outer jacket for maximum flexibility and durability
• Steel inner casing is tightly coiled for low compression ratios
• Pre-lubricated nylon inner sleeve guarantees smooth operation and long life
• All wire ends are bird-caged to terminal casting for superior pull-out resistance
• EPDM molded rubber components for high UV resistance and long life

Approximate Size:

• Housing Length: 830mm
• Ferrule end Top OD: 7.40mm
• Ferrule end Bot OD: 9.80mm (Top hat type)
• Travel: 100 to 115mm when using mid way adjuster
• Cable Top Mid Adjuster: provides 16mm of adjustment with rubber cover
• Nipple Top end Barrel: 8x10mm with rubber boot for lever
• Nipple Bot end Barrel: 8x10mm with rubber wire cover
• Inner Wire: 2.0mm



Cross Reference Numbers Only:

• 4ES-26335-11-00
• 1SN-26335-00-00
• MOTION PRO 05-0224
• VENHILL Y01-3-033
• 14-150.MP
• 14-150.PX
• 14-150.VH
• 14-150_AB
• ALLBALLS 45-2037
• PROX 53.120037
