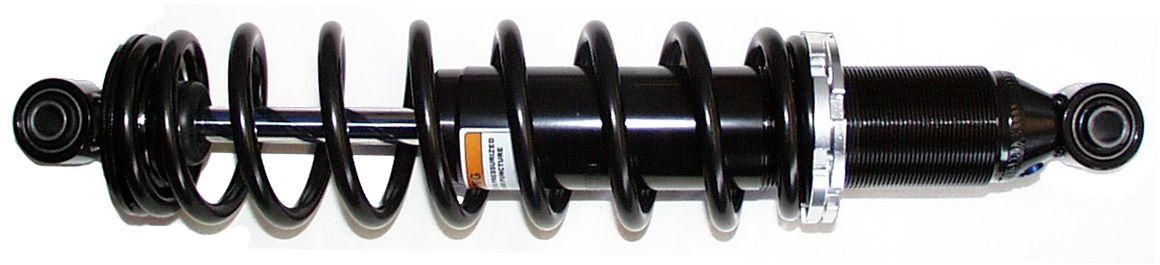

BRONCO SHOCK ATV FRONT, AU-04303, 5ND-F3350-00-00

FITMENT:

• Yamaha Kodiak 400 – 2003 2004 2005
  Yamaha Kodiak 450 – 2003 2004


SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 39
• STROKE MM: 98
• SPRING OD MM: 74.5
• SPRING WIRE DIAMETER MM: 7.5
• SPRING RATE LBS/INCH: –
• SPRING RATE KG/MM: –
• CENTER TO CENTER MM: 362
• CENTER TO CENTER IN: 14 1/4

Part No. 29-551.EA (oro2u.com)
BRONCO Heavy Duty ATV Front Shock – AU-04303
Cross reference numbers ONLY.

5ND-F3350-00-00
