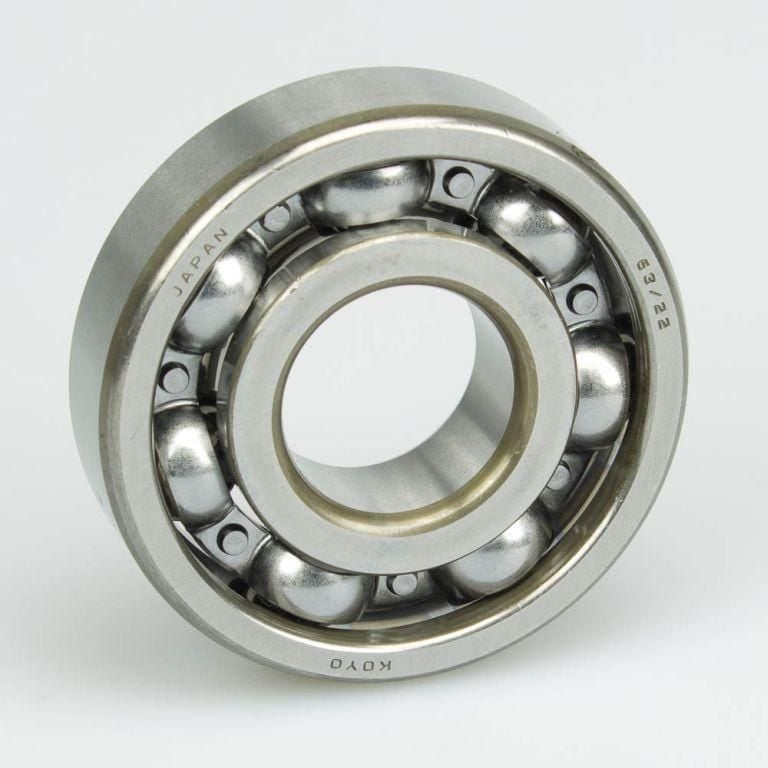

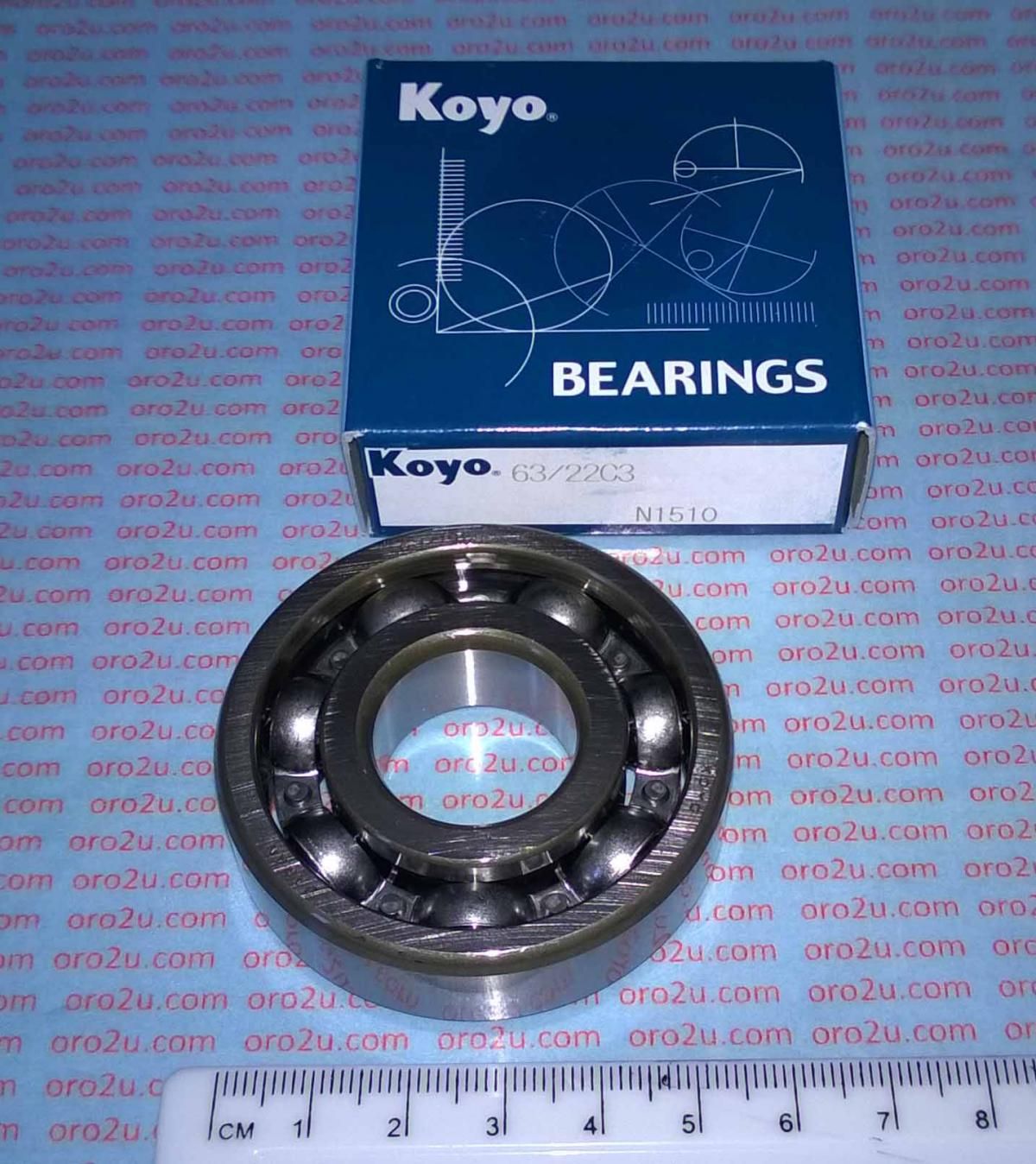

BEARING 63/22 C3 KOYO 22x56x16, PROX 23.6322C3, BEA077, MADE IN JAPAN

KOYO 63/22 C3 Made in Japan. 22x56x16 OPEN,

KOYO MADE IN JAPAN High quality bearings.
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life.
KOYO Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
C3 Bearings ~ A Brief Explanation -Applications like motorcycle wheels or bicycle wheels do not require C3 rated bearings.

Quality bearing from OEM manufacturer for
Honda CR125 ,
Suzuki RM125 (NOTE! clutch / right side ’86-’88) and
Yamaha YZ125, Honda TRX300
Suzuki RM125 (1977-1988)
Kawasaki KX125 (1985-1987)

Part No. 56-516.C3.KOYO (oro2u.com)

Cross reference numbers ONLY.
91063-HC4-771, 91001-KWS-901, 91001-KSE-671, 09262-22025, 09262-22029, 92045-1300,   2012-2018,   92045-0139, 93306-37204-00,

1988 TRX300FW A – FRONT FINAL GEAR
1989 TRX300 A – FINAL DRIVEN GEAR
1990 TRX300 A – FINAL DRIVEN GEAR
1990 TRX300FW A – FRONT FINAL GEAR
1990 TRX300FW A – FINAL DRIVEN GEAR
1991 TRX300 A – FINAL DRIVEN GEAR
1991 TRX300 AN – FINAL DRIVEN GEAR
1991 TRX300FW A – FRONT FINAL GEAR
1991 TRX300FW A – FINAL DRIVEN GEAR
1991 TRX300FW AN – FRONT FINAL GEAR
1991 TRX300FW AN – FINAL DRIVEN GEAR
1992 TRX300 A – FINAL DRIVEN GEAR
1992 TRX300 AN – FINAL DRIVEN GEAR
1992 TRX300FW A – FINAL DRIVEN GEAR
1992 TRX300FW AN – FINAL DRIVEN GEAR
1993 TRX300 A – FINAL DRIVEN GEAR
1993 TRX300 AN – FINAL DRIVEN GEAR
1993 TRX300FW A – FINAL DRIVEN GEAR
1993 TRX300FW AN – FINAL DRIVEN GEAR
1994 TRX300 A – FINAL DRIVEN GEAR
1994 TRX300 AN – FINAL DRIVEN GEAR
1994 TRX300FW A – FINAL DRIVEN GEAR
1994 TRX300FW AN – FINAL DRIVEN GEAR
1995 TRX300 A – FINAL DRIVEN GEAR
1995 TRX300 AN – FINAL DRIVEN GEAR
1995 TRX300FW A – FINAL DRIVEN GEAR
1995 TRX300FW AN – FINAL DRIVEN GEAR
1996 TRX300 A – FINAL DRIVEN GEAR
1996 TRX300 AN – FINAL DRIVEN GEAR
1996 TRX300FW A – FRONT FINAL GEAR
1996 TRX300FW A – FINAL DRIVEN GEAR
1996 TRX300FW AN – FRONT FINAL GEAR
1996 TRX300FW AN – FINAL DRIVEN GEAR
1997 TRX300 A – FINAL DRIVEN GEAR
1997 TRX300 AN – FINAL DRIVEN GEAR
1997 TRX300FW A – FRONT FINAL GEAR
1997 TRX300FW A – FINAL DRIVEN GEAR
1997 TRX300FW AN – FRONT FINAL GEAR
1997 TRX300FW AN – FINAL DRIVEN GEAR
1998 TRX300 A – FINAL DRIVEN GEAR
1998 TRX300 AC – FINAL DRIVEN GEAR
1998 TRX300FW A – FRONT FINAL GEAR
1998 TRX300FW A – FINAL DRIVEN GEAR
1998 TRX300FW AC – FRONT FINAL GEAR
1998 TRX300FW AC – FINAL DRIVEN GEAR
1999 TRX300 A – FINAL DRIVEN GEAR
1999 TRX300 AC – FINAL DRIVEN GEAR
1999 TRX300FW A – FRONT FINAL GEAR
1999 TRX300FW A – FINAL DRIVEN GEAR
1999 TRX300FW AC – FRONT FINAL GEAR
1999 TRX300FW AC – FINAL DRIVEN GEAR
2000 TRX300 A – FINAL DRIVEN GEAR
2000 TRX300 AC – FINAL DRIVEN GEAR
2000 TRX300FW A – DRIVESHAFT
2000 TRX300FW A – FINAL DRIVEN GEAR
2000 TRX300FW AC – DRIVESHAFT
2000 TRX300FW AC – FINAL DRIVEN GEAR
